Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Adjustment

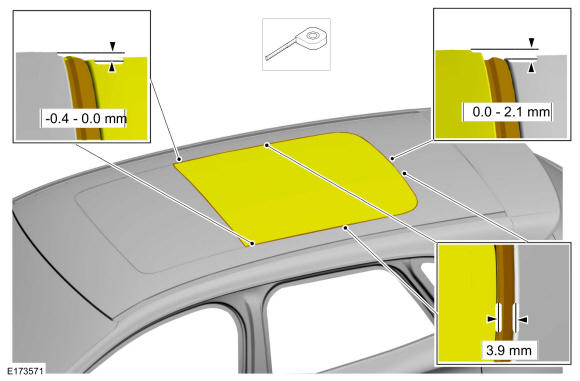

NOTE: Rear Fixed Glass Panel

NOTE: If both glass panels are being aligned, align the rear fixed glass panel before aligning the front sliding glass panel.

The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass (rear fixed or front sliding) has been removed or adjusted, or if the roof opening panel frame has been removed.

Courtesy of FORD MOTOR COMPANY

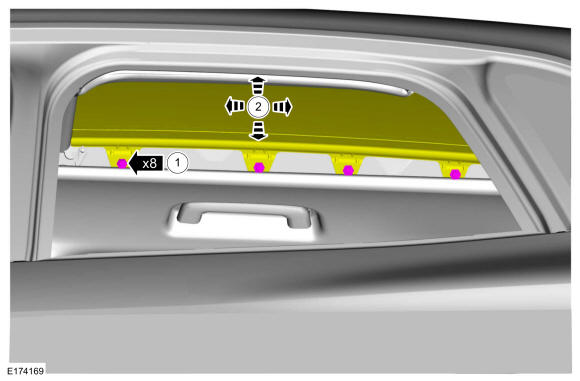

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
If necessary, loosen only for adjustment.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
If the rear fixed glass alignment was adjusted and the front sliding glass panel does not need adjustment, initialize the front sliding glass panel. Refer to: Power Roof Opening Panel Initialization .

Adjustment

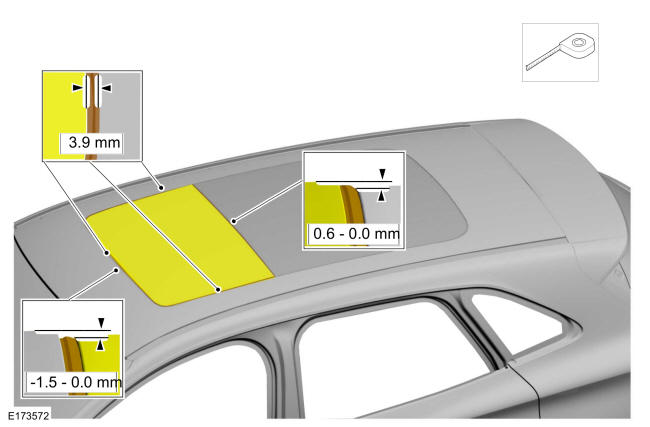

NOTE: Front Sliding Glass Panel

NOTE: The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass (rear fixed or front sliding) has been removed or adjusted, or if the roof opening panel frame has been removed.

Courtesy of FORD MOTOR COMPANY

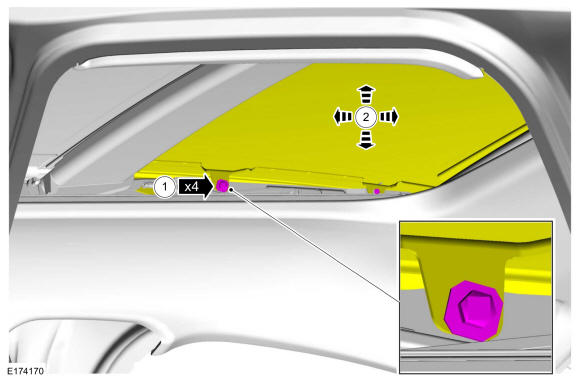

Courtesy of FORD MOTOR COMPANY
If necessary.

Courtesy of FORD MOTOR COMPANY
If necessary.

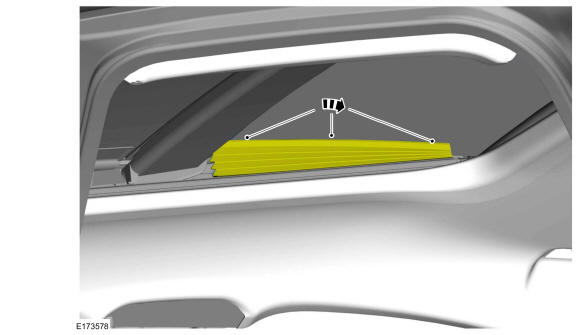

Courtesy of FORD MOTOR COMPANY
NOTE: Blind removed for clarity

If necessary, loosen only for adjustment.

Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
If any adjustment was made on the front sliding or rear fixed glass panels, initialize the front sliding glass panel. Refer to: Power Roof Opening Panel Initialization .
