Air Conditioning (A/C) Compressor Belt: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Typical application shown.NOTE: After installation, make sure the A/C compressor belt is correctly seated on the crankshaft and the A/C compressor pulleys.

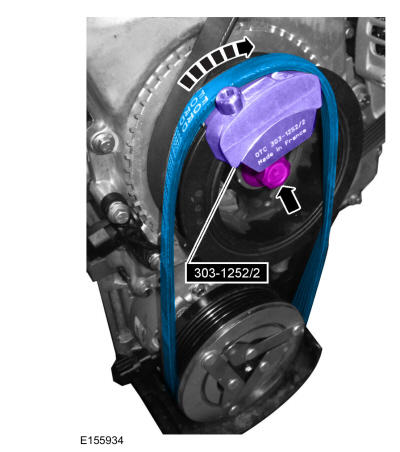

Position the A/C compressor belt onto the A/C compressor pulley and around the Stretchy Belt Installer Tool on the crankshaft pulley. Make sure that the belt is engaged with the crankshaft pulley and rotate the crankshaft clockwise to install the A/C compressor belt. Install Special Service Tool: 303-1252 Stretchy Belt Remover/ Installer Tool.
