Muffler and Tailpipe: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

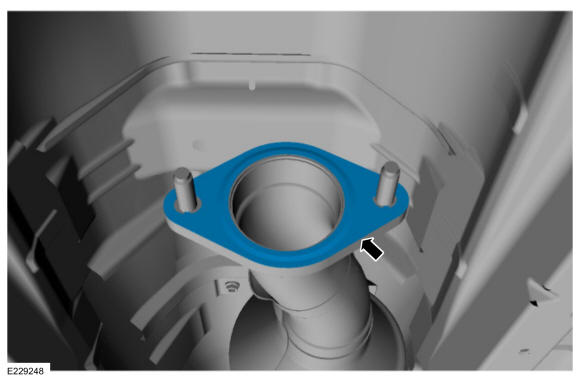

- Install the new muffler and tailpipe flange gasket.

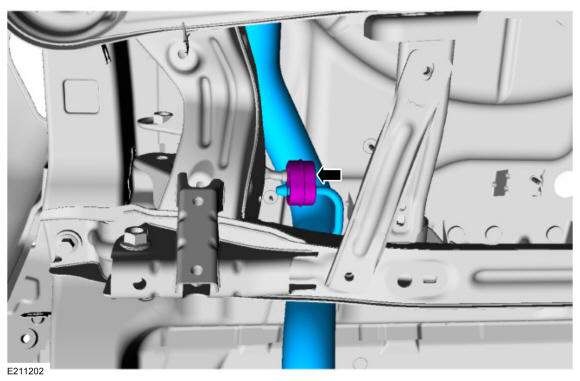

- Attach the exhaust isolator.

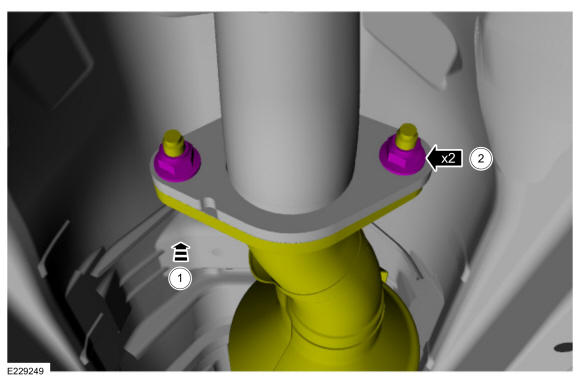

- Position the pipe and install the new muffler and tailpipe flange nuts.
Torque: 30 lb.ft (40 Nm)
-
NOTE: If a new muffler assembly is installed, tighten the 4 exhaust isolator hanger bolts to specifications.

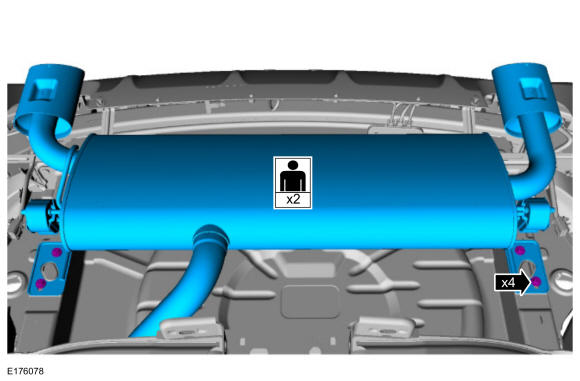

Install the muffler and exhaust isolator bracket bolts.
Torque: 18 lb.ft (25 Nm)
- Install the muffler and tailpipe service clamp.
Torque: 33 lb.ft (45 Nm)
- Check the exhaust system for leaks.
