Catalytic Converter: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Clean all exhaust connections before reassembly.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the battery tray. Refer to: Battery Tray .
Remove the HO2S. Refer to: Heated Oxygen Sensor (HO2S) .

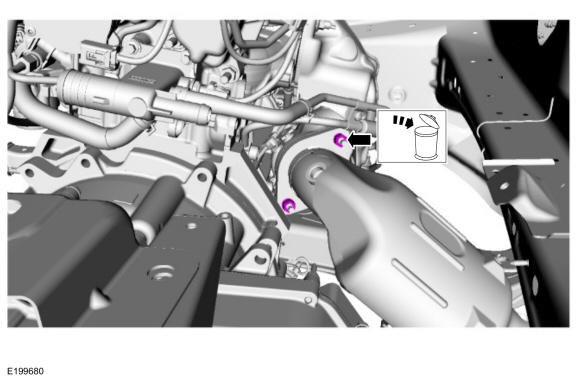

Remove and discard the catalytic converter nuts.

Courtesy of FORD MOTOR COMPANY
Remove and discard the muffler and tailpipe flange nuts. Position back the muffler and tailpipe.

Courtesy of FORD MOTOR COMPANY
Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: 2WD shown, 4WD similar.

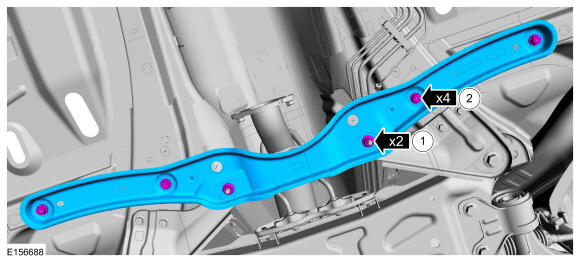

Remove the retainers and the front crossmember brace.

Courtesy of FORD MOTOR COMPANY
Remove the catalyst monitor sensor. Refer to: Catalyst Monitor Sensor .

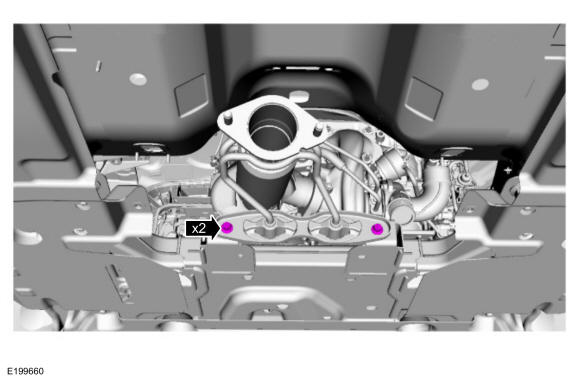

Remove the bolts from the exhaust isolator bracket to the subframe.

Courtesy of FORD MOTOR COMPANY

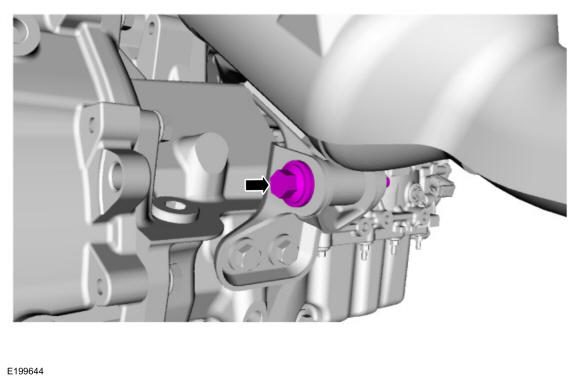

Remove the roll restrictor bolt.

Courtesy of FORD MOTOR COMPANY

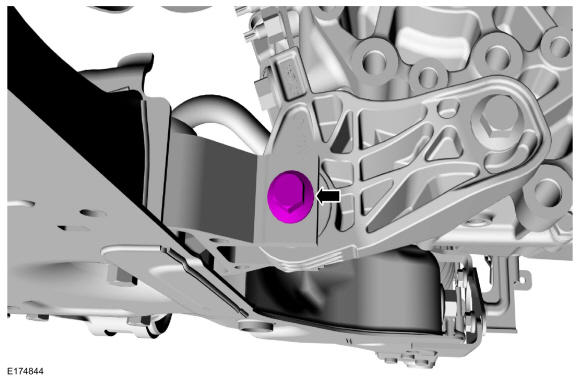

Remove the catalytic converter bracket through bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: If needed, mark the bracket to the transmission to make sure of proper placement during installation.

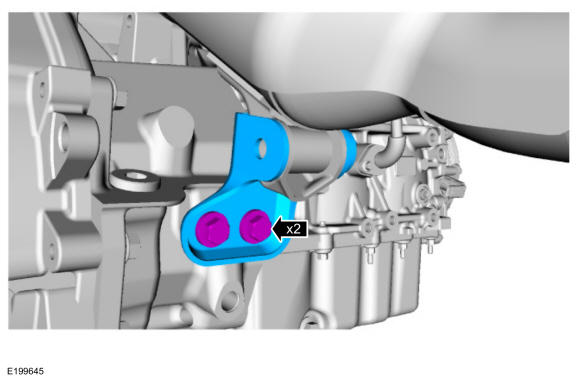

Remove the bolts and the catalytic converter bracket.

Courtesy of FORD MOTOR COMPANY

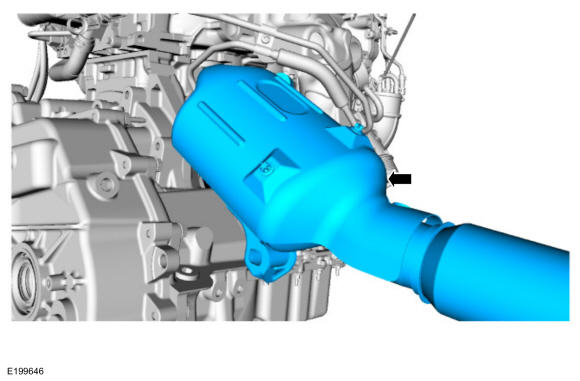

Remove the catalytic converter.

Courtesy of FORD MOTOR COMPANY
Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY
