Rear Halfshaft: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Never pick up or hold the halfshaft by only the inner or outer CV joint. Damage to the CV joint will occur.
NOTE:
Never use a hammer to remove or install the halfshafts. Damage to the halfshaft may occur.
NOTE:
Never use the halfshaft assembly as a lever to position other components. Damage to the halfshaft or CV joints may occur.
NOTE:
Do not allow the boots to contact sharp edges or hot exhaust components. Damage to the halfshaft boots will occur.
NOTE:
Do not drop assembled halfshafts. The impact may cut the boots from the inside without evidence of external damage.
- Refer to: Wheel Bearing and Wheel Hub - AWD
.

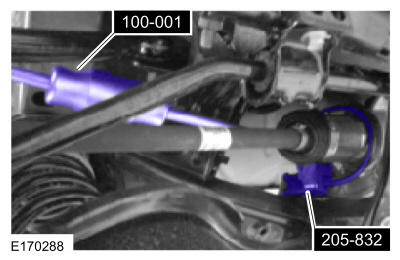

- Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 205-832 Remover, Halfshaft.multimedia:A supplement to the article is available.
