Rear Halfshaft: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: The halfshaft seal has to be replaced whenever the halfshaft is removed.
Refer to: Rear Halfshaft Seal .
-
NOTE: When the half shafts are removed the circlip must be replaced with a new circlip.
-

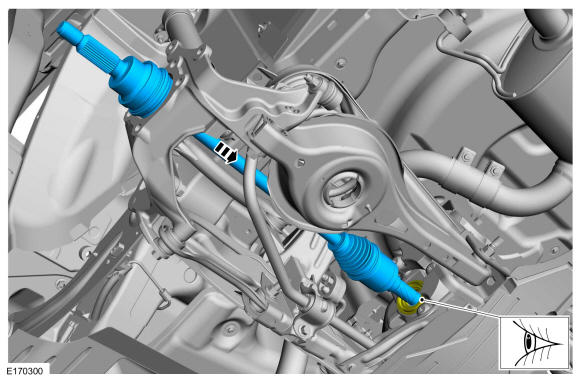

NOTE: Take extra care not to damage the seal and halfshaft boots.NOTE: When seated correctly, the halfshaft retainer circlip can be felt as it snaps into the differential side gear groove.

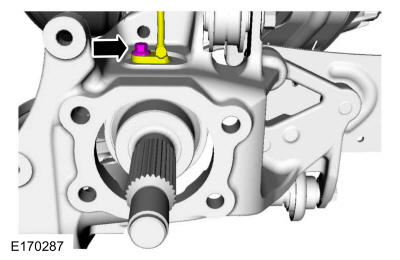

- Torque: 42 lb.in (4.8 Nm)
- Refer to: Wheel Bearing and Wheel Hub - AWD .
