Inner Constant Velocity (CV) Joint Boot: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front halfshaft. REFER to: Front Halfshaft LH . REFER to: Front Halfshaft RH .
  2. Remove and discard the CV boot clamps. Remove the inner CV joint housing.
    GFD227230Courtesy of FORD MOTOR COMPANY
  3. Clean as much old grease as possible from the CV joint surfaces.
    GFD227231Courtesy of FORD MOTOR COMPANY

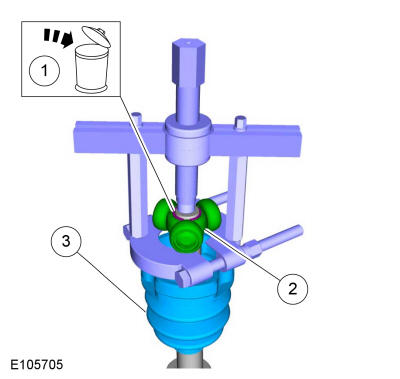

    1. Remove and discard the CV tripod circlip.
    2. Using a puller, remove the CV tripod. Use the General Equipment: Puller Use the General Equipment: Bearing Separator
    3. Remove the inner CV joint boot.
GFD227232Courtesy of FORD MOTOR COMPANY
