Inner Constant Velocity (CV) Joint Boot: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tool, install the inner CV joint boot and new small diameter CV boot clamp. Use Special Service Tool: 205-343 (T95P-3514-A) Installer, Constant Velocity Joint Boot Clamp.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

Position the inner CV boot back and install the CV joint tripod. Use the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY

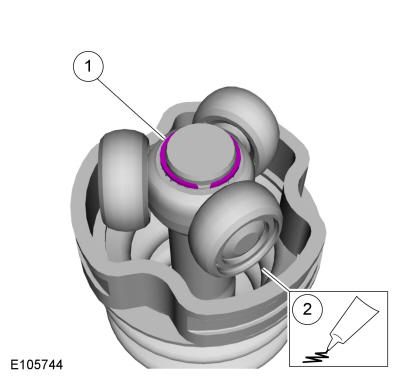

1. Install the new CV joint tripod circlip.
2. NOTE: Grease sachet is supplied with boot kit.

  Grease the CV joint tripod.

  Material: Motorcraft ® Constant Velocity Joint Grease / XG-5 (WSS-M1C258-A1)
Courtesy of FORD MOTOR COMPANY

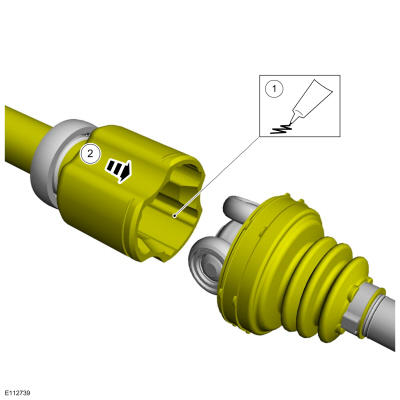

1. NOTE: Grease sachet is supplied with boot kit.

  Grease the CV joint tripod.

  Material: Motorcraft ® Constant Velocity Joint Grease / XG-5 (WSS-M1C258-A1)
2. Position the CV joint tripod into the CV tripod joint housing.
Courtesy of FORD MOTOR COMPANY

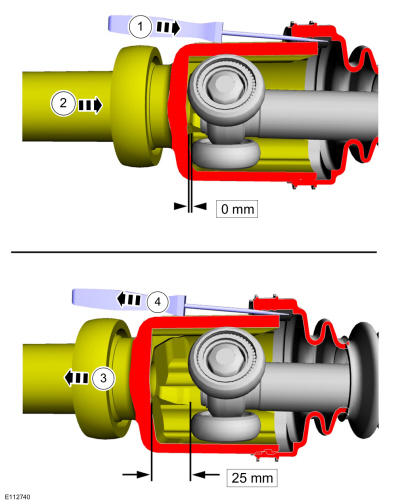

1. Insert the intermediate shaft into the CV joint boot. Use a flat blade screw driver to release trapped air. Use the General Equipment: Flat Headed Screw Driver
2. Completely slide the intermediate shaft into the CV joint tripod housing until it bottoms out.
3. Slide the intermediate shaft out 25mm (1 inch).
4. Remove the flat blade screw driver. Use the General Equipment: Flat Headed Screw Driver
Courtesy of FORD MOTOR COMPANY
Using the special tool, install the new large diameter CV boot clamp. Use Special Service Tool: 205-343 (T95P-3514-A) Installer, Constant Velocity Joint Boot Clamp.

Courtesy of FORD MOTOR COMPANY
Install the front halfshaft. REFER to: Front Halfshaft LH . REFER to: Front Halfshaft RH .
