Rear Wheel Bearing and Wheel Hub - FWD: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.
Torque: 81 lb.ft (110 Nm)

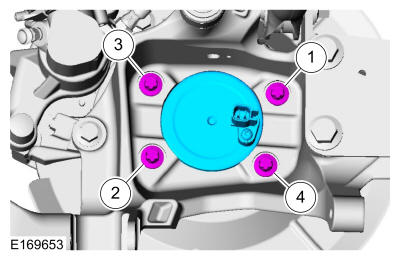

Fig 1: Wheel Bearing/Wheel Hub tightening Sequence FWD
Courtesy of FORD MOTOR COMPANY

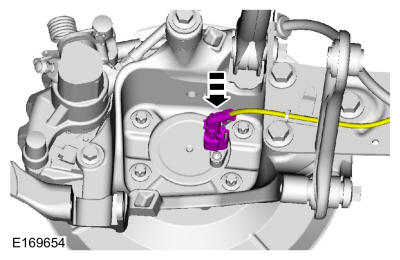

Position the wheel speed sensor and connect the wheel speed sensor connector.

Courtesy of FORD MOTOR COMPANY
Install the brake disc. Refer to: Brake Disc .
