Rear Wheel Bearing and Wheel Hub - AWD: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Remove the wheel and tire. Refer to: Wheel and Tire .

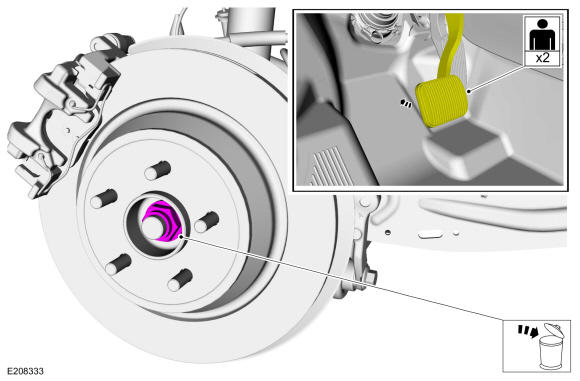

Remove and discard the spindle nut.

Courtesy of FORD MOTOR COMPANY
Remove the brake disc. Refer to: Brake Disc .

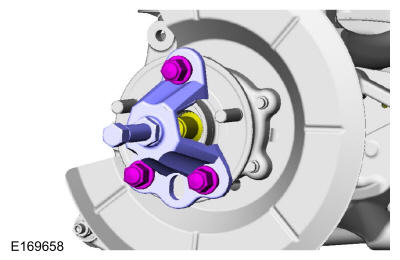

Press the halfshaft from the hub. Use Special Service Tool: 205-D070 (D93P-1175-B) Remover, Front Wheel Hub.

Courtesy of FORD MOTOR COMPANY

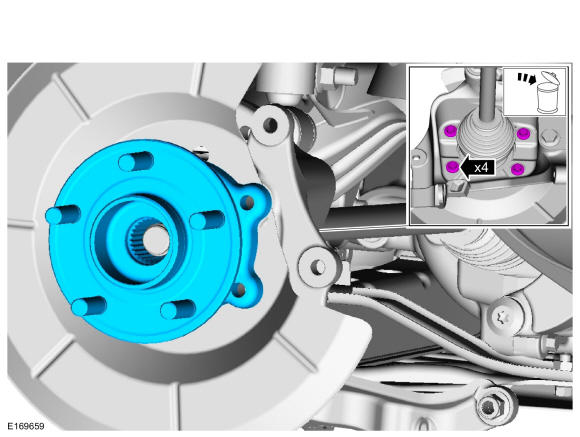

Remove and discard the wheel bearing and wheel hub bolts and remove the wheel bearing and wheel hub.

Courtesy of FORD MOTOR COMPANY
