Rear Wheel Bearing and Wheel Hub - AWD: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

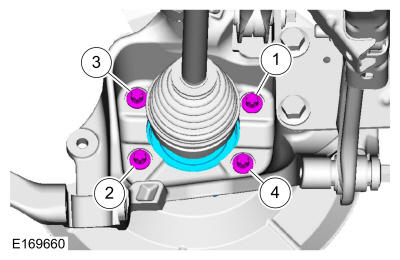

Position the wheel bearing and wheel hub and install the new wheel bearing and wheel hub bolts.
Torque: 81 lb.ft (110 Nm)

Fig 1: Wheel Bearing/Wheel Hub tightening Sequence AWD
Courtesy of FORD MOTOR COMPANY

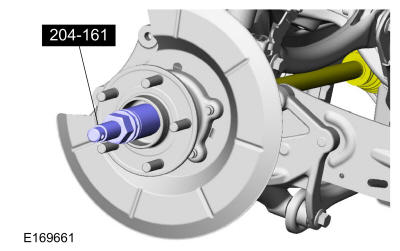

Pull the halfshaft into the hub. Use Special Service Tool: 204-161 (T97P-1175-A) Installer, Halfshaft.

Courtesy of FORD MOTOR COMPANY
Install the brake disc. Refer to: Brake Disc .

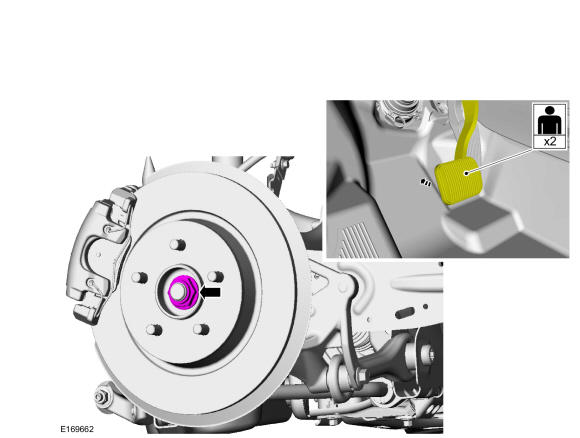

Install the new spindle nut.
Torque: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
