Rear Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inspect and, if necessary, install new stabilizer bar bushings.

NOTE: Make sure that the component is clean, free of foreign material and lubricant.

NOTE: Make sure that these components are installed to the noted removal position.

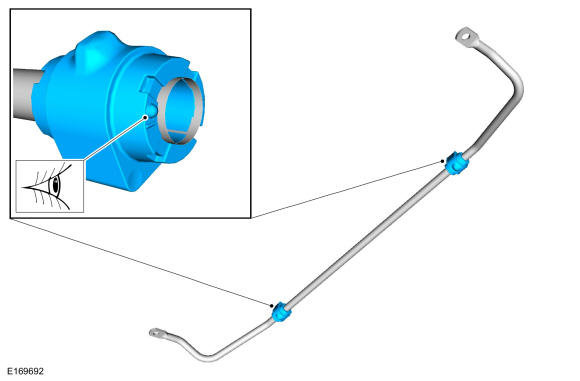

The bushing locator bump on both bushings must face the RH side of the vehicle.

Courtesy of FORD MOTOR COMPANY
NOTE: Apply water to the brackets to aid in installation.

On both sides. Press the rear stabilizer bar brackets in place onto the rear stabilizer bar bushings.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the clamp is installed to the same orientation as when removed.

Inspect the clamps for their proper orientation.

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
