Rear Spring: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Wheel and Tire .
Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

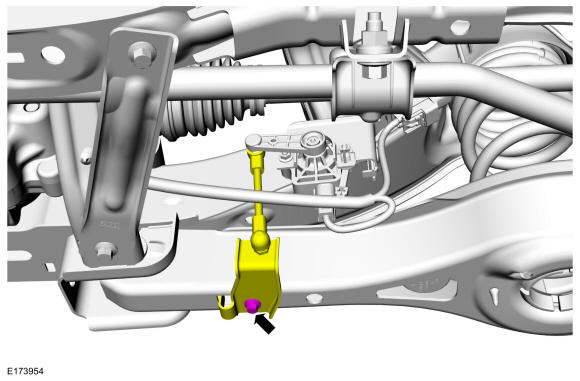

NOTE: The rear suspension height sensor must be disconnected from the lower control arm prior to servicing suspension components or damage to the suspension height sensor and/or the vehicle dynamic suspension system may occur. The sensor will need to be recalibrated after reassembly.

If equipped.

Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

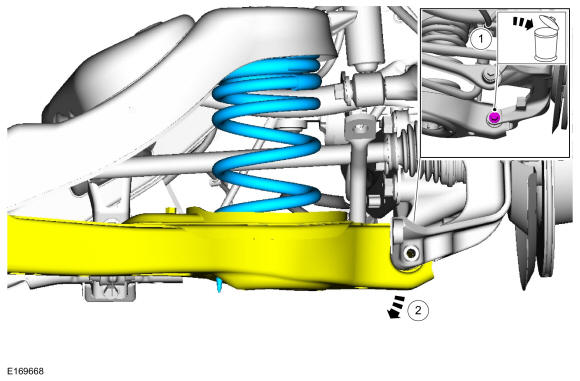

NOTE: Note the position of the coil spring insulators and coil spring for installation.

Torque: 129 lb.ft (175 Nm)

Courtesy of FORD MOTOR COMPANY
