Rear Shock Absorber: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .
Support the rear suspension using an axle stand. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

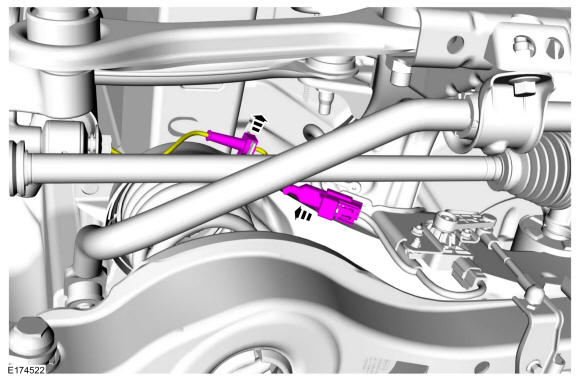

If equipped with dynamic suspension. Disconnect the rear shock absorber electrical connector.

Courtesy of FORD MOTOR COMPANY

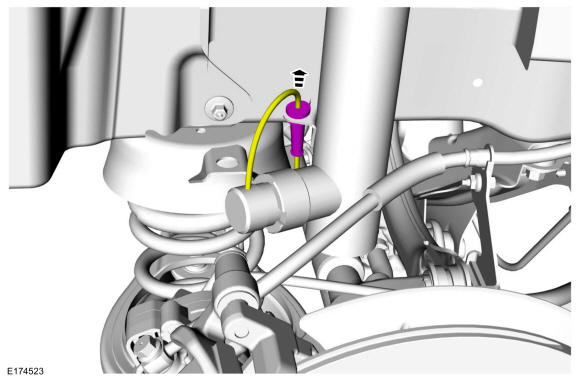

If equipped with dynamic suspension. Disconnect the rear shock absorber electrical sensor.

Courtesy of FORD MOTOR COMPANY

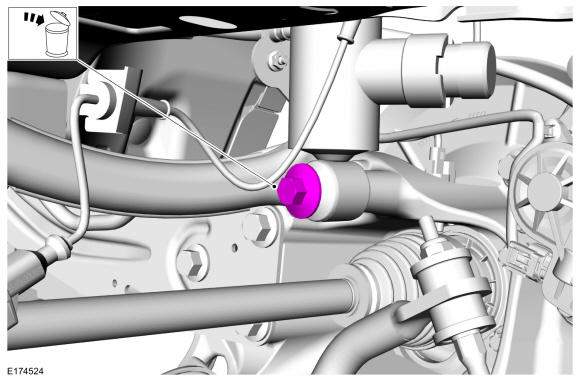

Remove and discard the lower shock absorber bolt.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

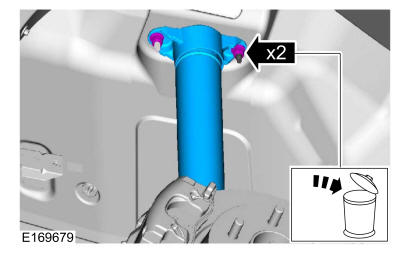

Remove and discard the upper shock absorber nut and bushing assembly.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
