Rear Front Lower Arm RH: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
NOTE:

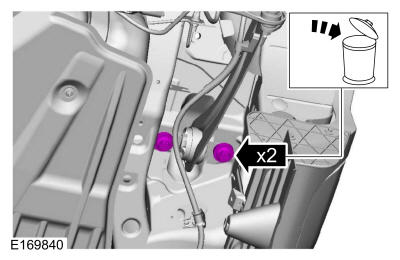

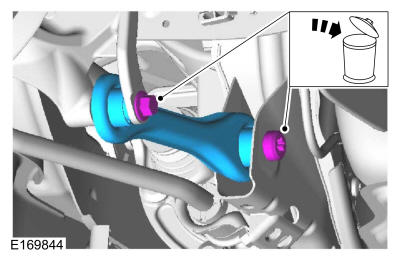

The subframe assembly must be lowered approximately 65 mm (2.559 in) to gain access to the front lower control arm inboard bolt.
- Refer to: Wheel and Tire .
- On both sides.

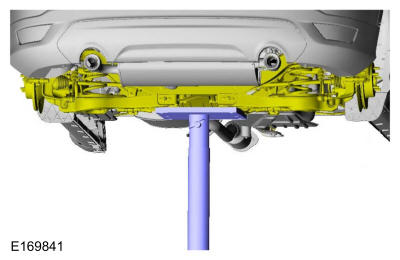

- Use the General Equipment: Transmission Jack
- Use the General Equipment: Transmission Jack
