Front Wheel Bearing and Wheel Hub: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If removing the wheel hub, a new wheel bearing must be installed.

Refer to: Wheel Knuckle .
NOTE: After the wheel hub is removed from the wheel knuckle, the wheel bearing must be discarded.

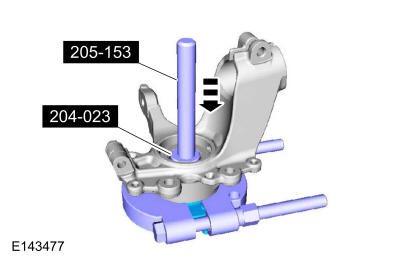

Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 204-023 (T73T-1217-A) Installer, Wheel Hub Bearing Cup., 205-D064 (D84L-1123-A) Puller, Bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
NOTE: The Bearing Puller and Bushing Remover/Installer must be used to prevent damage to the hub. If the hub is damaged, a new hub must be installed.

NOTE: Do not use heat to remove the bearing inner ring or damage to the bearing may occur.

NOTE: This step may not be necessary if the wheel bearing inner race remains on the wheel bearing after removing the wheel hub.

Use Special Service Tool: 204-180 (T93P-5493-A) Remover/Installer, Bushing., 205-D064 (D84L-1123-A) Puller, Bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

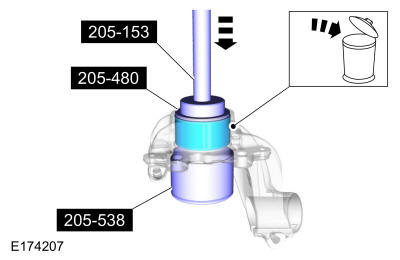

Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-480 Installer, Drive Pinion Inner Bearing Cup., 205-538 Remover, Axle Bushing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
