Front Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

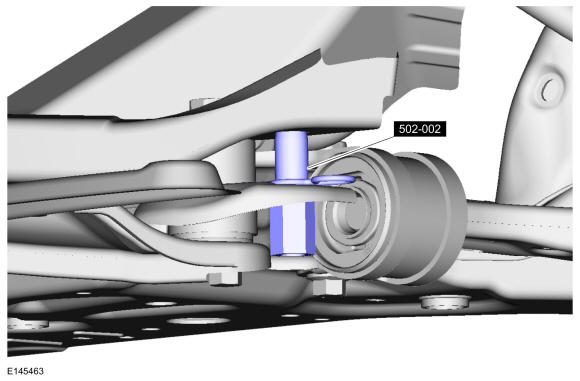

NOTE: Before tightening the subframe bolts, align the subframe using the special tool and the reference marks made during removal.

Use Special Service Tool: 502-002 (T94P-2100-AH) Alignment Pins, Subframe.

Courtesy of FORD MOTOR COMPANY
Refer to: Front Toe Adjustment .
If equipped with dynamic suspension, calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
