Front Stabilizer Bar Bushing: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If replacing the stabilizer bar or the stabilizer bar bushings, note the position of the stabilizer bar bushing brackets. The bushing locator on the clamp offset must face inboard.

NOTE: Make sure that the component is clean, free of foreign material and lubricant.

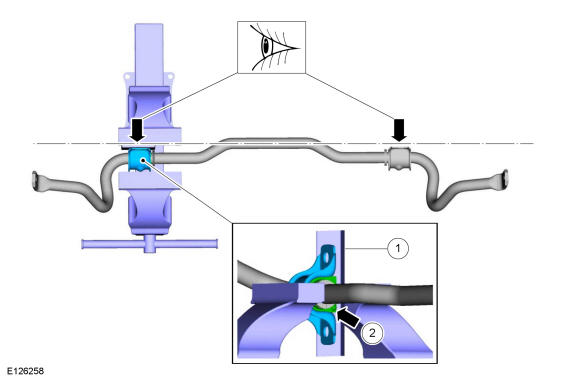

1. Metal strip. Install the front stabilizer bar bushing.
2. NOTE: Make sure that the component is installed to the position noted before removal.

  NOTE: The bushing locator bump on both bushings must face the RH side of the vehicle.

  Install the front stabilizer bar bushing bracket. Use the General Equipment: Vise
Courtesy of FORD MOTOR COMPANY
Install the front stabilizer bar. Refer to: Front Stabilizer Bar .
