Front Lower Arm: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not tighten the nuts and bolts at this time.

Finger tight at this stage.

Courtesy of FORD MOTOR COMPANY

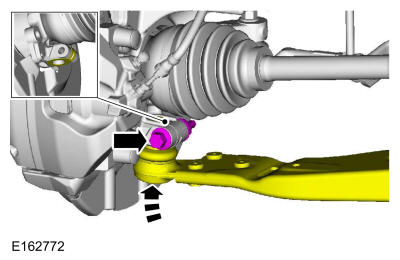

Torque: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Wheel and Tire .

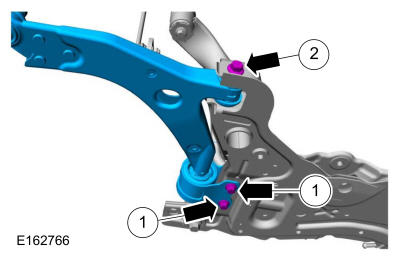

1. Finger tight.
2. Torque:
  Stage 1: 85 lb.ft (115 Nm)

  Stage 2: 90 °
3. Torque:
  Stage 1: 85 lb.ft (115 Nm)

  Stage 2: 90 °
Courtesy of FORD MOTOR COMPANY

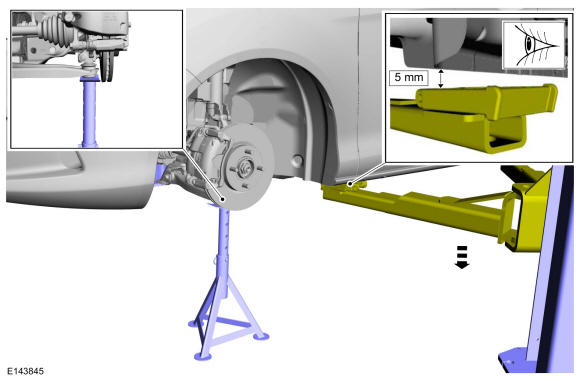

Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

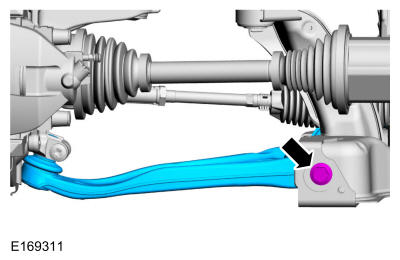

NOTE: Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.

Torque: 203 lb.ft (275 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped.

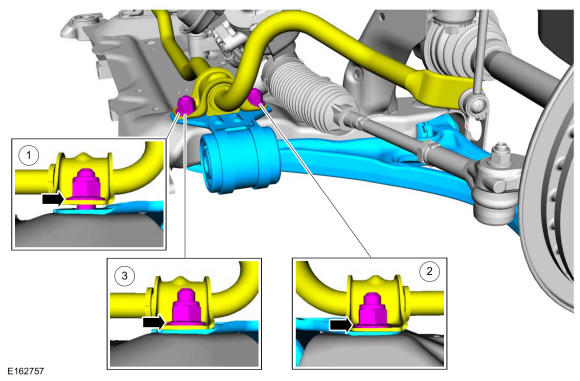

Torque:

1: 18 lb.ft (25 Nm)

2: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped.

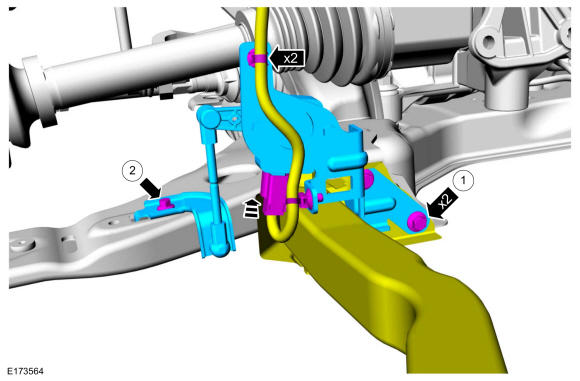

Torque:

1: 18 lb.ft (25 Nm)

2: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped.

Courtesy of FORD MOTOR COMPANY
Refer to: Battery Disconnect and Connect .
Refer to: Front Toe Adjustment .
If equipped with dynamic suspension, calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
