Timing Chain: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

NOTE: If it is necessary to install a new timing chain tensioner, a cast iron tensioner is to be replaced with an aluminum tensioner (6K254). The existing bolts must be discarded and replaced with new bolts (6K282).

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .

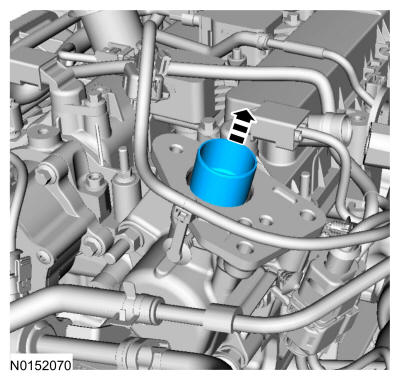

Remove the fuel injection pump tappet.

Courtesy of FORD MOTOR COMPANY
Remove the RH front wheel and tire. Refer to: Wheel and Tire .
Remove the retainers and position the fender splash shield aside.

Courtesy of FORD MOTOR COMPANY
NOTE: The fuel injection cam lobe must be positioned at zero lift before removing the fuel injection pump housing.

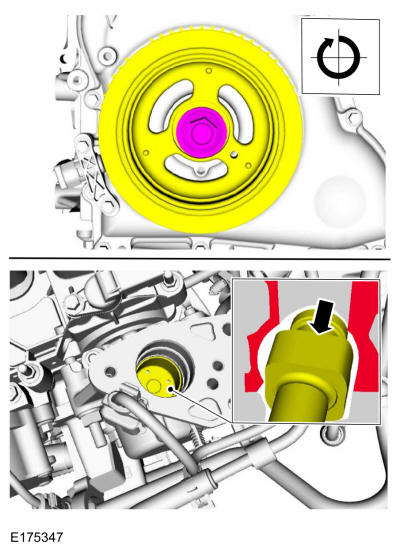

Rotate the crankshaft clockwise so the cam lobe is positioned at zero lift.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and position the EVAP canister purge valve aside.

Courtesy of FORD MOTOR COMPANY
Remove the nut and position the coolant tube aside.

Courtesy of FORD MOTOR COMPANY
Remove the stud bolts and the fuel injection pump housing.

Courtesy of FORD MOTOR COMPANY
Remove the engine front cover. Refer to: Engine Front Cover .
NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Do not rely on the Camshaft Alignment Tool to prevent camshaft rotation. Damage to the tool or the camshaft can occur.

Install Special Service Tool: 303-1565 Alignment Tool, Camshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Use an open-ended wrench to prevent the component from turning.

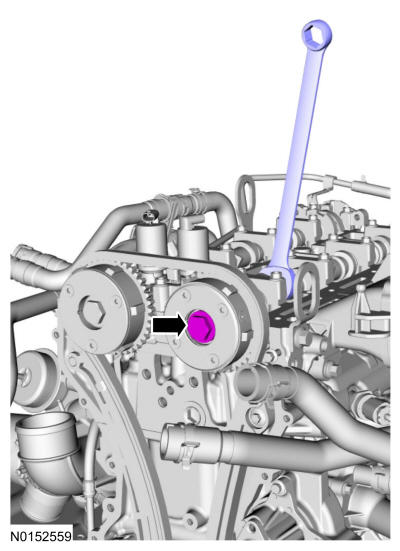

Loosen the exhaust VCT unit bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Use an open-ended wrench to prevent the component from turning.

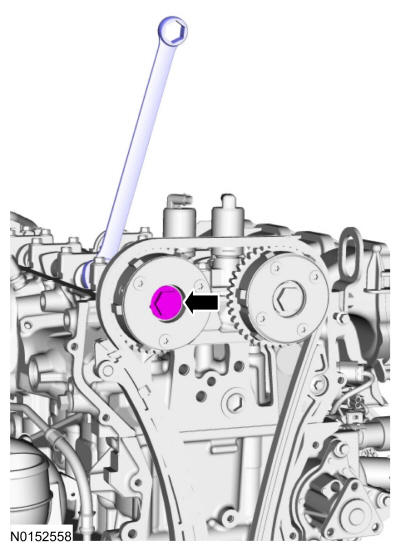

Loosen the intake VCT unit bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with cast iron timing chain tensioner.
1. Using a small pick, release and hold the ratchet mechanism.
2. While holding the ratchet mechanism in the released position, compress the tensioner by pushing the timing chain arm toward the tensioner.
3. Insert a holding pin into the hole to retain the tensioner.
Courtesy of FORD MOTOR COMPANY
NOTE: If it is necessary to install a new timing chain tensioner, a cast iron tensioner is to be replaced with an aluminum tensioner (6K254). The existing bolts must be discarded and replaced with new bolts (6K282).

NOTE: If equipped with cast iron timing chain tensioner.

Remove the bolts and the timing chain tensioner.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with aluminum timing chain tensioner.

Remove the bolts and the timing chain tensioner.

Courtesy of FORD MOTOR COMPANY

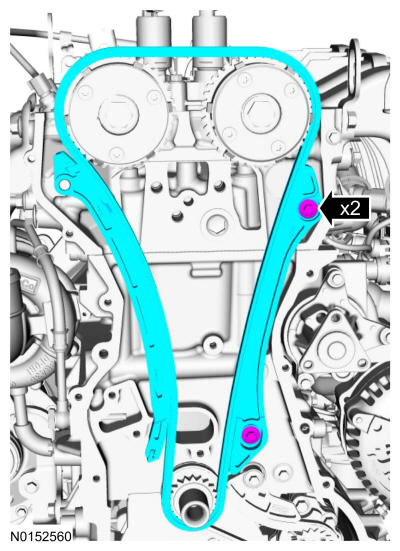

Remove the bolts and the timing chain guide, timing chain and tensioner arm.

Courtesy of FORD MOTOR COMPANY
