Timing Chain: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Install the tensioner arm, timing chain, timing chain guide and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

NOTE: If equipped with aluminum timing chain tensioner.

NOTE: If the timing chain tensioner plunger is not pinned in the compressed position, follow the next step.

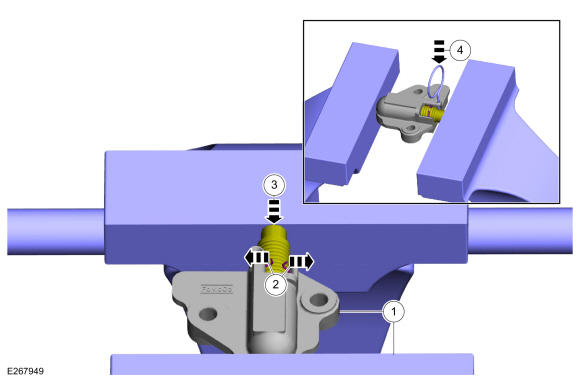

Reset the timing chain tensioner.
1. Position the timing chain tensioner in a soft-jawed vise.
2. Spread the ends of the ratchet wire clip apart.
3. Using the soft-jawed vise, compress the plunger to the reset position.
4. Install a locking pin in the 2 holes of the timing chain tensioner body to hold the plunger in place.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with aluminum timing chain tensioner.

NOTE: Do not remove the locking pin until the tensioner bolts are tightened.

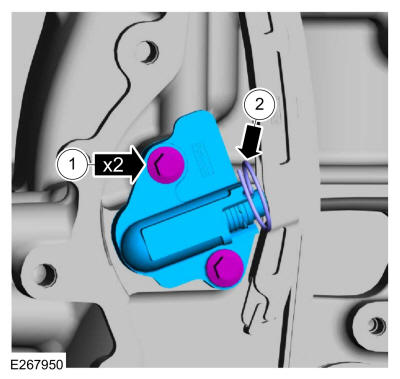

1. Install the timing chain tensioner and the bolts.
  Torque: 89 lb.in (10 Nm)
2. Remove the locking pin.
Courtesy of FORD MOTOR COMPANY

NOTE: If equipped with cast iron timing chain tensioner.

NOTE: If the timing chain tensioner plunger and ratchet assembly are not pinned in the compressed position, follow the next 4 steps.
NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.

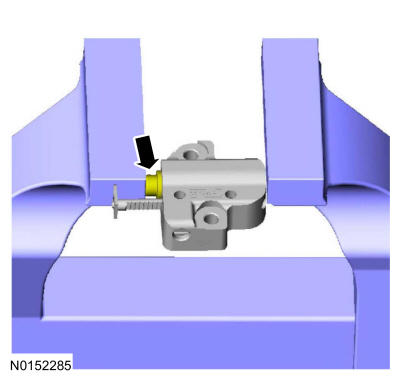

Using the edge of a vise, compress the timing chain tensioner plunger.

Courtesy of FORD MOTOR COMPANY

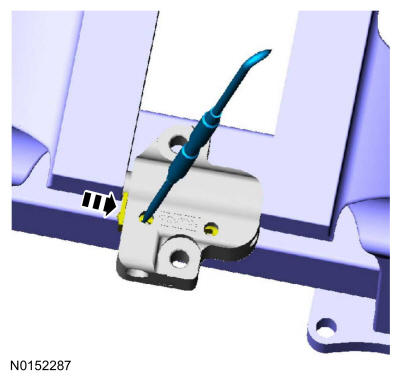

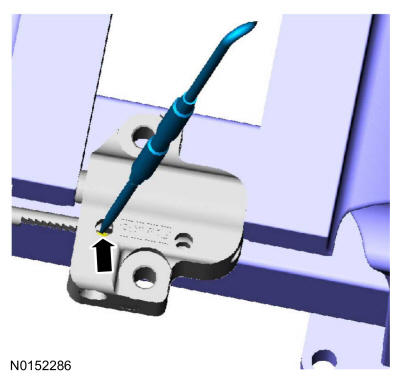

Using a small pick, push back and hold the ratchet mechanism.

Courtesy of FORD MOTOR COMPANY
While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

Courtesy of FORD MOTOR COMPANY

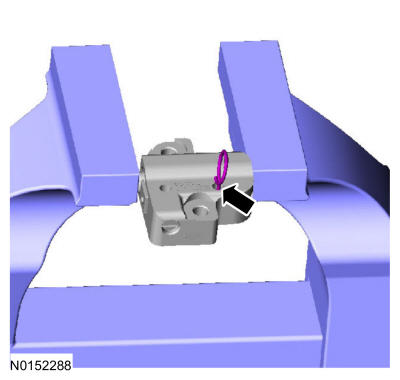

Install a locking pin into the hole in the tensioner housing to hold the ratchet assembly and the plunger in during installation.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with cast iron timing chain tensioner.

NOTE: Do not remove the locking pin until the tensioner bolts are tightened.

Install the timing chain tensioner and the bolts.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with cast iron timing chain tensioner.

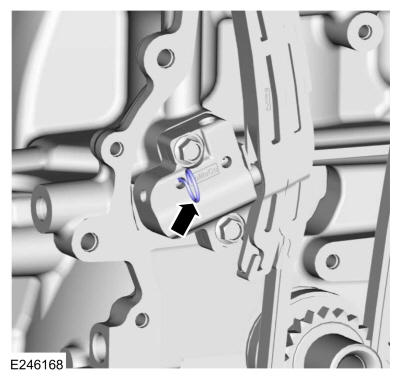

Remove the locking pin.

Courtesy of FORD MOTOR COMPANY
NOTE: Use an open-ended wrench to prevent the component from turning.

Tighten the exhaust VCT unit bolt in 2 stages.

Torque:

Stage 1: 30 lb.ft (40 Nm)

Stage 2: 60 °

Courtesy of FORD MOTOR COMPANY
NOTE: Use an open-ended wrench to prevent the component from turning.

Tighten the intake VCT unit bolt in 2 stages.

Torque:

Stage 1: 30 lb.ft (40 Nm)

Stage 2: 60 °

Courtesy of FORD MOTOR COMPANY
Install the engine front cover. Refer to: Engine Front Cover .
NOTE: The fuel injection cam lobe must be positioned at zero lift before installing the fuel injection pump housing.

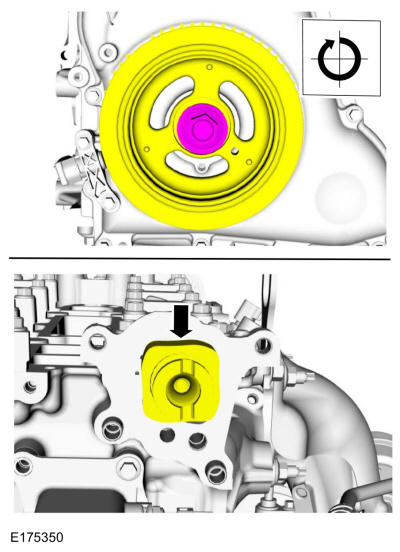

Rotate the crankshaft clockwise so the cam lobe is positioned at zero lift.

Courtesy of FORD MOTOR COMPANY

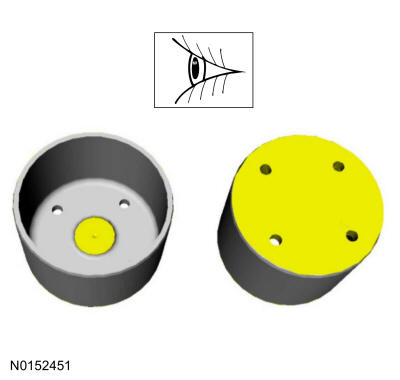

Inspect and replace as necessary.

Courtesy of FORD MOTOR COMPANY
Install the fuel injection pump housing and the stud bolts and tighten in 2 stages.
Torque:

Stage 1: 133 lb.in (15 Nm)

Stage 2: 60 °

Courtesy of FORD MOTOR COMPANY
If any flat spots or scoring are found, especially in the indicated areas, inspect the fuel injection pump and the fuel injection pump tappet drive lobe. Install new components as necessary.

Courtesy of FORD MOTOR COMPANY

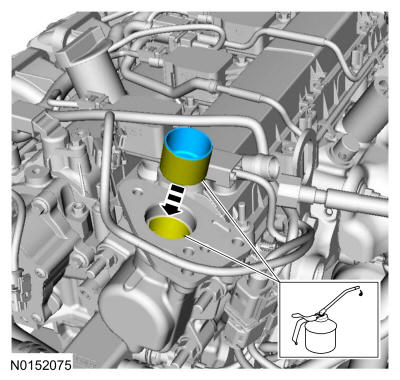

Lubricate the fuel injection pump tappet with clean engine oil and install.
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
Position the coolant tube and install the nut.
Torque: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY
Position the EVAP canister purge valve and install the nuts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Position the fender splash shield and install the retainers.

Courtesy of FORD MOTOR COMPANY
Install the RH front wheel and tire. Refer to: Wheel and Tire .
Install the high-pressure fuel pump. Refer to: High-Pressure Fuel Pump .
