Oil Pump: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  3. Remove the following items:

    1. Refer to: Cowl Panel .
    2. Refer to: Engine Front Cover .

    • Remove the bolts and the hood release handle and detach the retainer

    • Remove the retainers and the upper radiator sight shield.

    GFD227569Courtesy of FORD MOTOR COMPANY
  5. Install Special Service Tool: 303-F072 Support Bar, Engine.
    GFD227570Courtesy of FORD MOTOR COMPANY
  6. Loosen the clamps and remove the nuts and the CAC inlet tube.
    GFD228113Courtesy of FORD MOTOR COMPANY
  7. Loosen the clamps and remove the CAC outlet tube.
    GFD228068Courtesy of FORD MOTOR COMPANY
    • Disconnect the electrical connectors and wiring retainer.

    • Remove the nut and stud.

    • Remove the bolts and position the A/C compressor aside and support.

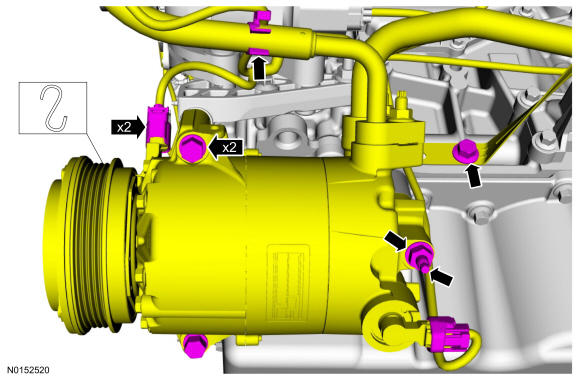

    GFD228126Courtesy of FORD MOTOR COMPANY
    • Remove the oil pan drain bolt and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    • Install the oil pan drain bolt.

      Torque: 20 lb.ft (27 Nm)

    GFD227494Courtesy of FORD MOTOR COMPANY
  10. Remove and discard the engine oil filter.
    GFD228101Courtesy of FORD MOTOR COMPANY
  11. Remove the oil pan-to-transmission bolts.
    GFD228117Courtesy of FORD MOTOR COMPANY
  12. Remove the oil pan-to-transmission bolt.
    GFD227571Courtesy of FORD MOTOR COMPANY
  13. Remove the bolts and the oil pan.
    GFD227572Courtesy of FORD MOTOR COMPANY
  14. Remove the bolts and the oil pickup and screen.
    GFD227573Courtesy of FORD MOTOR COMPANY
  15. Discard the oil pickup and screen O-ring seal.
    GFD228127Courtesy of FORD MOTOR COMPANY
    1. WARNING: Take extra care when handling the compressed spring.

      Release the tension on the tensioner spring.

    2. Remove the shoulder bolts and the tensioner and position the oil pump chain aside.

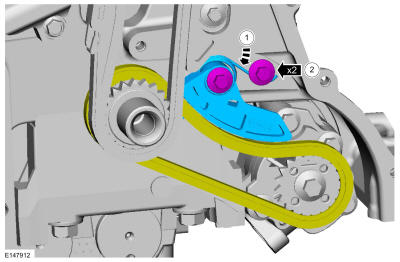

    GFD227575Courtesy of FORD MOTOR COMPANY
  17. Remove the bolt and oil pump sprocket.
    GFD227576Courtesy of FORD MOTOR COMPANY
  18. Remove the bolts and the oil pump.
    GFD227577Courtesy of FORD MOTOR COMPANY
  19. Remove and discard the oil pump gasket.
GFD228128Courtesy of FORD MOTOR COMPANY
