Oil Pump: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

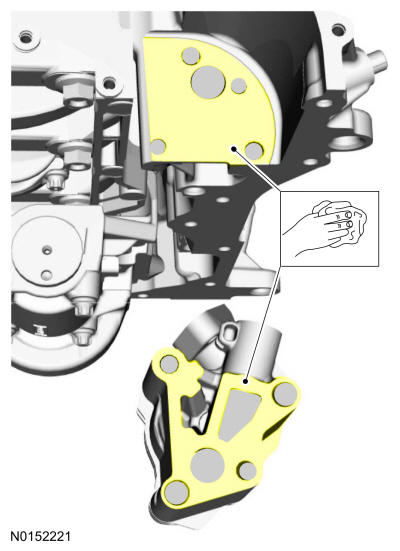

Clean the oil pump sealing surfaces.
Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY
Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

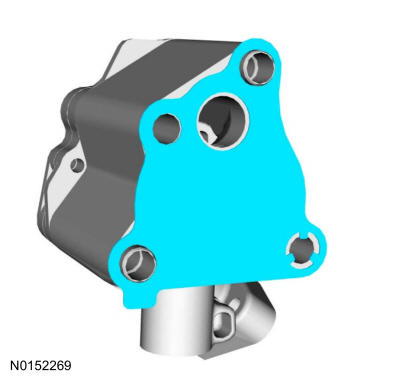

Install the new oil pump gasket.

Courtesy of FORD MOTOR COMPANY

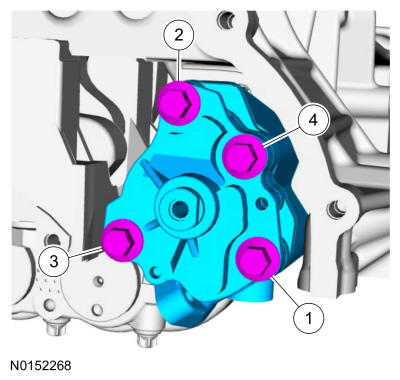

Install the oil pump and the bolts. Tighten in the sequence shown in 2 stages:
Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 177 lb.in (20 Nm)

Fig 1: Engine Oil Pump Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the oil pump sprocket and bolt.
Torque: 18 lb.ft (25 Nm

Courtesy of FORD MOTOR COMPANY
1. WARNING: Take extra care when handling the compressed spring.

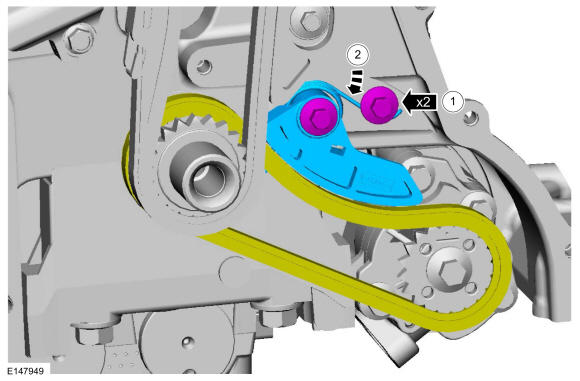

  Position the oil pump chain and install the tensioner and shoulder bolts.

  Torque: 89 lb.in (10 Nm)
2. Hook the tensioner spring around the shoulder bolt.
Courtesy of FORD MOTOR COMPANY

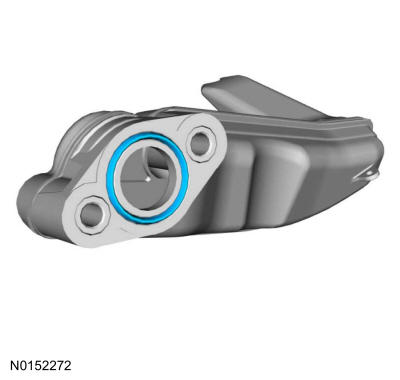

Install a new O-ring seal on the oil pickup and screen.

Courtesy of FORD MOTOR COMPANY
Install the oil pickup and screen and bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

Clean the oil pan sealing surfaces. Use the General Equipment: Plastic Scraper

Courtesy of FORD MOTOR COMPANY
NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

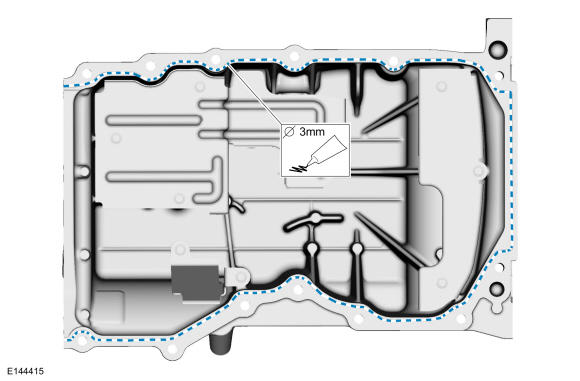

Apply a 3 mm bead of silicone sealant.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Install the oil pan and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

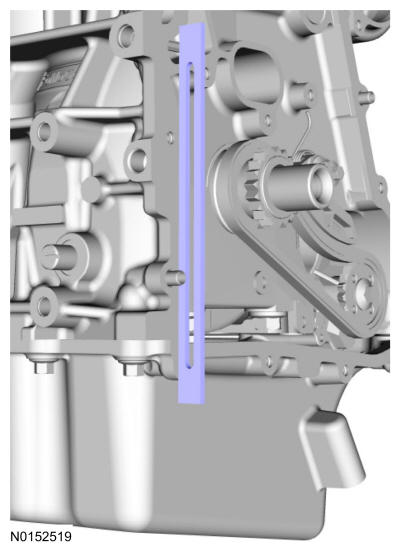

Using a straight edge, align the front surface of the oil pan flush with the front surface of the engine block. Use the General Equipment: Round-Ended Steel Rule

Courtesy of FORD MOTOR COMPANY

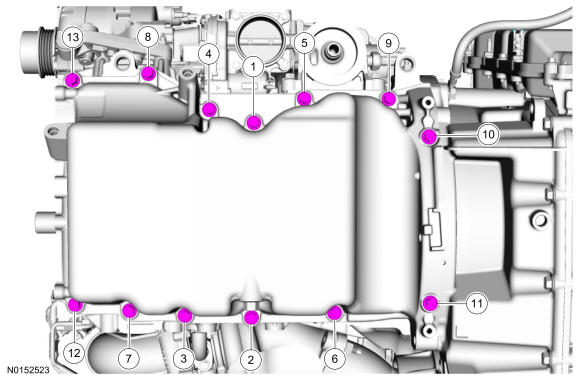

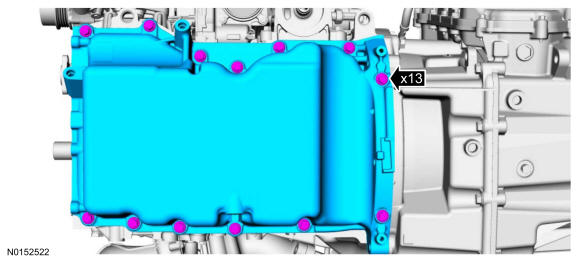

Tighten the bolts in sequence shown.
Torque: 18 lb.ft (25 Nm)

Fig 2: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY

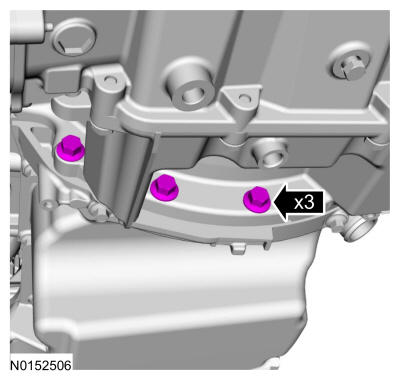

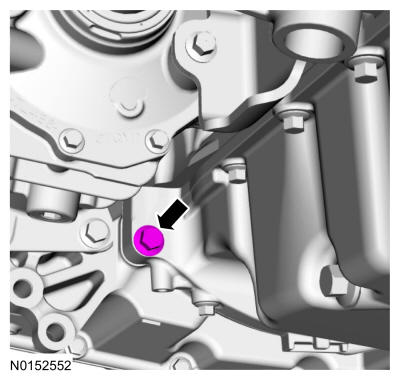

Install the oil pan-to-transmission bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the oil pan-to-transmission bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

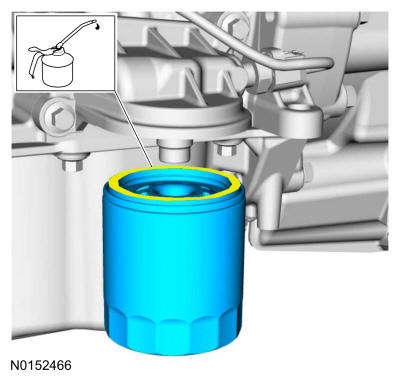

Lubricate the oil filter seal with clean engine oil and install.
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY

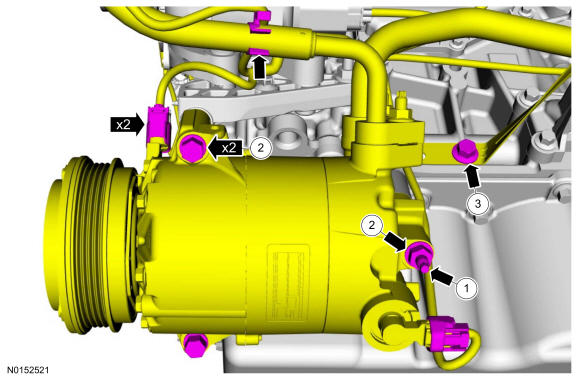

1. Position the A/C compressor and install the stud.
  Torque: 80 lb.in (9 Nm)
2. Install the A/C compressor bolts and nut.
  Torque: 18 lb.ft (25 Nm)
3. Install the A/C compressor line bracket bolt.
  Torque: 177 lb.in (20 Nm)
- Connect the electrical connectors and wiring retainer.
Courtesy of FORD MOTOR COMPANY

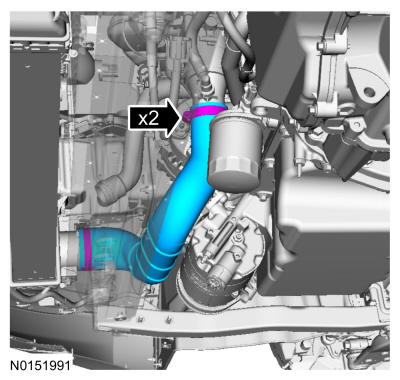

Install the CAC outlet tube and tighten the clamps.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the CAC inlet tube and the nuts.
  Torque: 97 lb.in (11 Nm)
2. Tighten the clamps
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

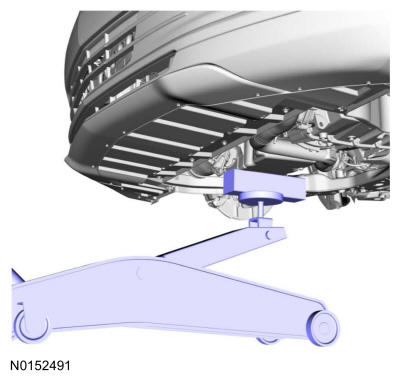

Position the jack and wooden block under the front of the oil pan. Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

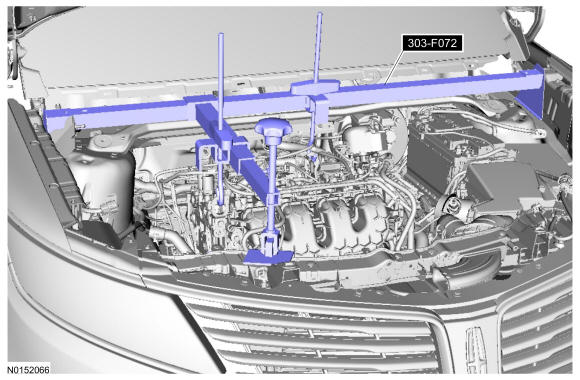

Remove Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

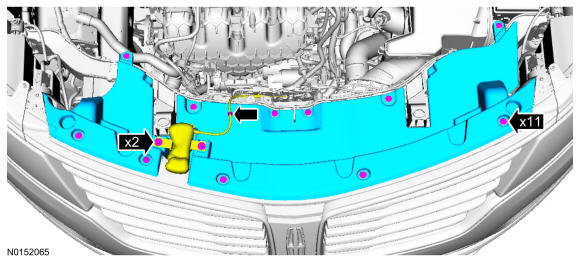

- Install the upper sight shield and the retainers.
- Install the hood release handle and the bolts and retainer.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Engine Front Cover .
2. Refer to: Cowl Panel .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

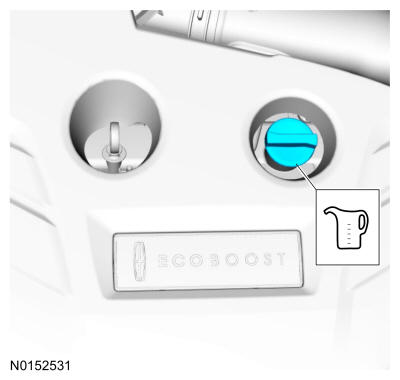

Fill the engine with clean engine oil. Refer to: Specifications .
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
