Oil Pan: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

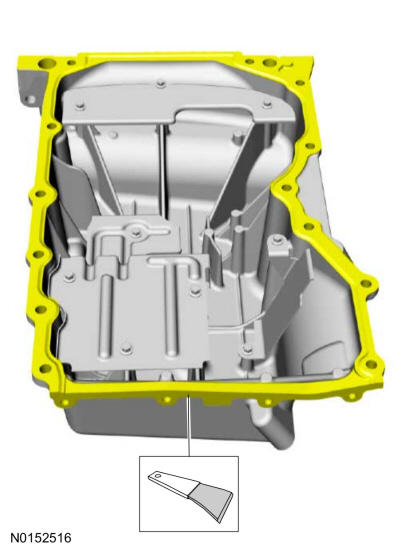

    Clean the oil pan sealing surface. Use the General Equipment: Plastic Scraper

    GFD227559Courtesy of FORD MOTOR COMPANY
  2. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

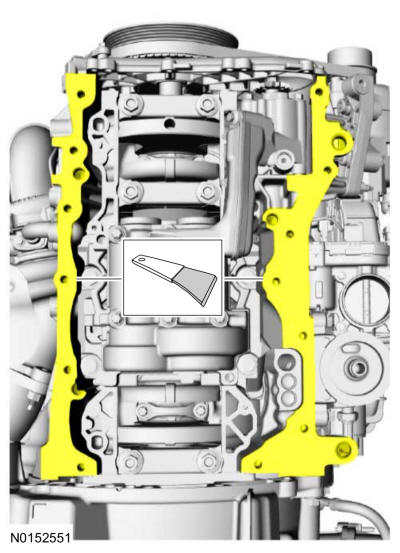

    Clean the engine sealing surface. Use the General Equipment: Plastic Scraper

    GFD228119Courtesy of FORD MOTOR COMPANY
  3. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

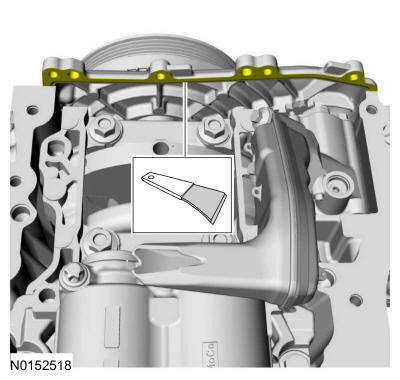

    Clean the engine front cover sealing surface. Use the General Equipment: Plastic Scraper

    GFD227561Courtesy of FORD MOTOR COMPANY
  4. NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

    Apply a 3 mm bead of silicone sealant.

    Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    GFD227562Courtesy of FORD MOTOR COMPANY
  5. Install the oil pan and the bolts finger-tight.
    GFD227558Courtesy of FORD MOTOR COMPANY
  6. NOTE: The engine front cover-to-oil pan fasteners must be tightened first to align the front surface of the oil pan flush with the front surface of the engine block.

    Install the engine front cover-to-oil pan bolts.

    Torque: 89 lb.in (10 Nm)

    GFD227557Courtesy of FORD MOTOR COMPANY

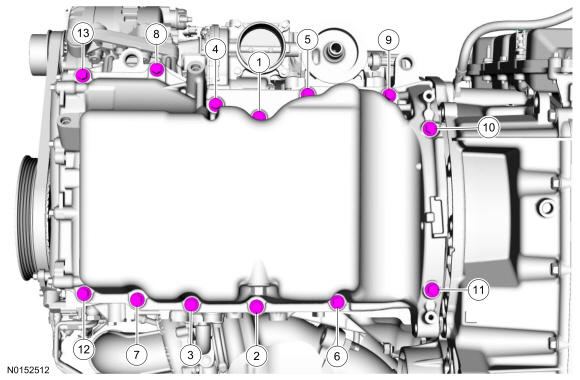

  7. Tighten the bolts in sequence shown.

    Torque: 18 lb.ft (25 Nm)

    Fig 1: Oil Pan Tightening Sequence
    GFD227563Courtesy of FORD MOTOR COMPANY

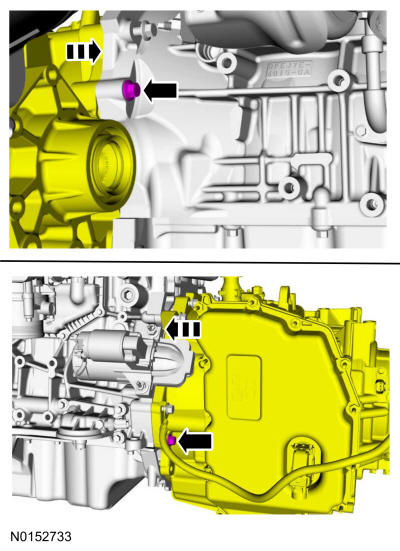

  8. Alternate tightening the LH transmission-to-engine and RH engine-to-transmission lower bolts to draw the transaxle and engine together.

    Torque: 35 lb.ft (48 Nm)

    GFD228120Courtesy of FORD MOTOR COMPANY

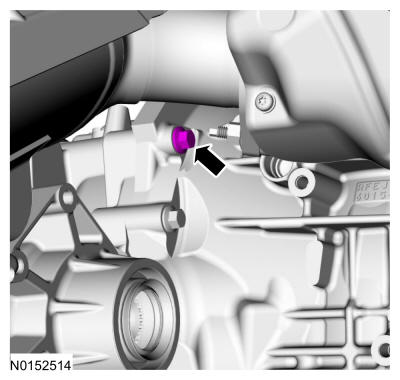

  9. Tighten the engine-to-transmission bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD227565Courtesy of FORD MOTOR COMPANY
  10. Install the oil pan-to-transmission bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD228116Courtesy of FORD MOTOR COMPANY
  11. Install the oil pan-to-transmission bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD228117Courtesy of FORD MOTOR COMPANY

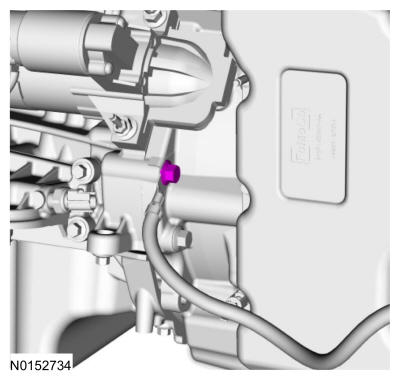

  12. Tighten the transmission-to-engine bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD228121Courtesy of FORD MOTOR COMPANY
  13. Lubricate the oil filter seal with clean engine oil and install.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Torque:

    Stage 1: 71 lb.in (8 Nm)

    Stage 2: 180 °

    GFD228102Courtesy of FORD MOTOR COMPANY
  14. Install the transfer case. Refer to: Transfer Case .

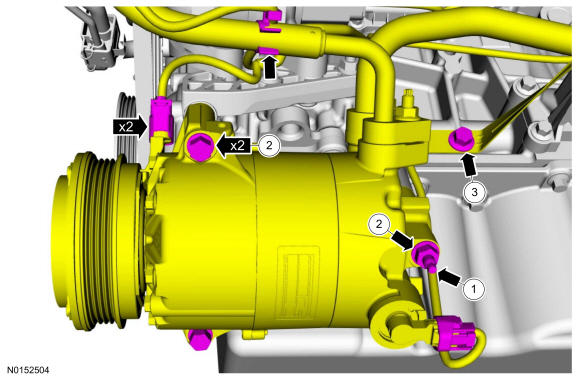

    1. Position the A/C compressor and install the stud.

      Torque: 80 lb.in (9 Nm)

    2. Install the A/C compressor bolts and nut.

      Torque: 18 lb.ft (25 Nm)

    3. Install the A/C compressor line bracket bolt.

      Torque: 177 lb.in (20 Nm)

    • Connect the electrical connectors and wiring retainer.

    GFD228122Courtesy of FORD MOTOR COMPANY

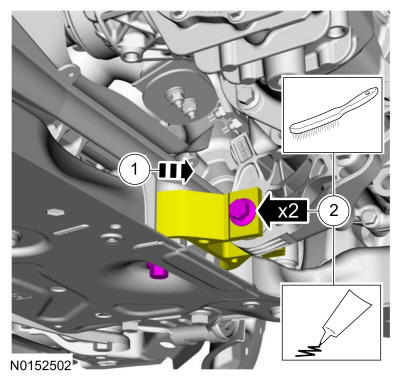

    1. Position the engine roll restrictor.
    2. Clean the bolts and apply thread locking sealant and install the engine roll restrictor bolts.

      Material: Motorcraft ® Threadlock and Sealer / TA-25-B

      Torque: 92 lb.ft (125 Nm)

    GFD228123Courtesy of FORD MOTOR COMPANY
  17. Install the CAC outlet tube and tighten the clamps.

    Torque: 44 lb.in (5 Nm)

    GFD228068Courtesy of FORD MOTOR COMPANY
    1. Install the CAC inlet tube and the nuts.

      Torque: 97 lb.in (11 Nm)

    2. Tighten the clamps.

      Torque: 44 lb.in (5 Nm)

    GFD228124Courtesy of FORD MOTOR COMPANY
  19. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
  20. Install the underbody shields and the retainers.
    GFD228111Courtesy of FORD MOTOR COMPANY
  21. Tighten the transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD227541Courtesy of FORD MOTOR COMPANY
  22. Install the following items:

    1. Install the air cleaner. Refer to: Air Cleaner .
    2. Install the upper air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

  23. Install the oil indicator.
    GFD227540Courtesy of FORD MOTOR COMPANY
    1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

      Lubricate each grommet with silicone grease.

      Material: Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
    GFD227516Courtesy of FORD MOTOR COMPANY
  25. Fill the engine with clean engine oil. Refer to: Specifications .

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

GFD227497Courtesy of FORD MOTOR COMPANY
