Engine Front Cover: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.

NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.
Courtesy of FORD MOTOR COMPANY
Loosen the coolant pump pulley bolts.

Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. Refer to: Accessory Drive Belt .
2. Refer to: Accessory Drive Belt Tensioner .
3. Refer to: Crankshaft Front Seal .
4. Refer to: Engine Mount .
Remove the bolts and the coolant pump pulley.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and wiring harness retainer and position aside the turbocharger vacuum control valve aside.

Courtesy of FORD MOTOR COMPANY

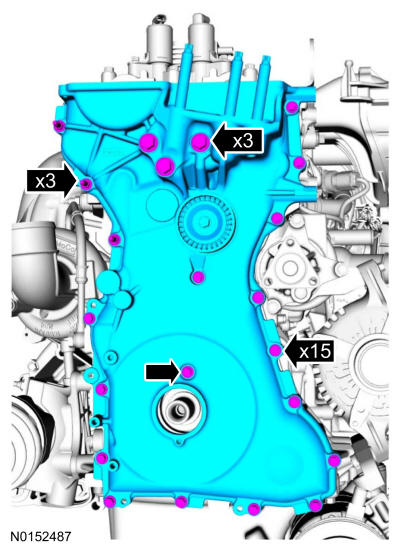

Remove the fasteners and the engine front cover.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

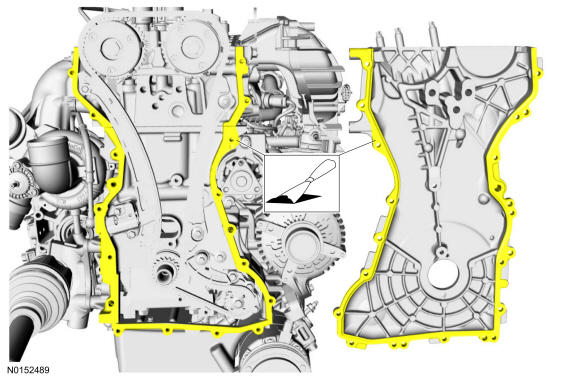

Clean the engine front cover sealing surfaces. Use the General Equipment: Plastic Scraper

Courtesy of FORD MOTOR COMPANY
