Cylinder Head: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

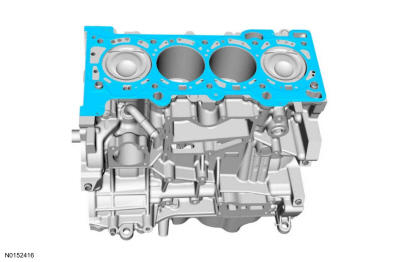

Install the new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

Install the cylinder head and the 10 new bolts and tighten in 5 stages.

Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 133 lb.in (15 Nm)

Stage 3: 41 lb.ft (55 Nm)

Stage 4: 90 °

Stage 5: 90 °

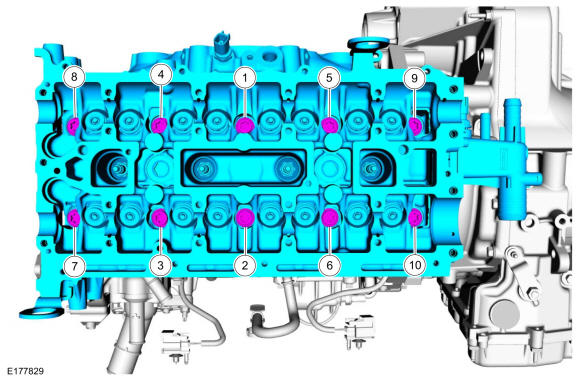

Fig 1: Cylinder Head Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Lubricate the coolant tube O-ring seal with clean engine coolant.
Material: Motorcraft ® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

Courtesy of FORD MOTOR COMPANY

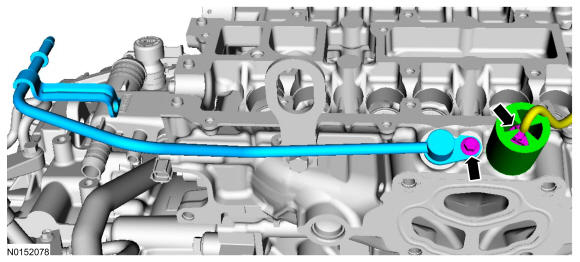

- Connect the CHT sensor and slide the insulator down.
- NOTE: The coolant tube must be fully seated prior to tighten the bolt.

  Install the coolant tube and bolt.

  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

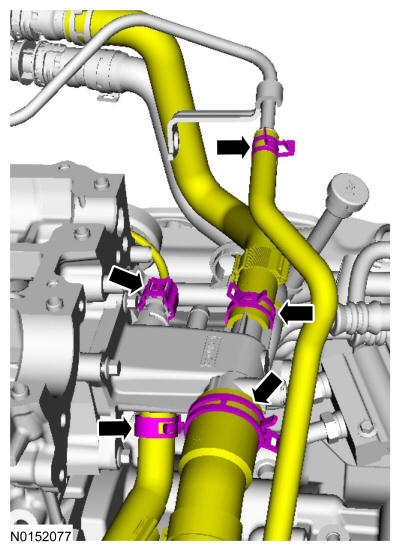

Connect the ECT sensor and the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

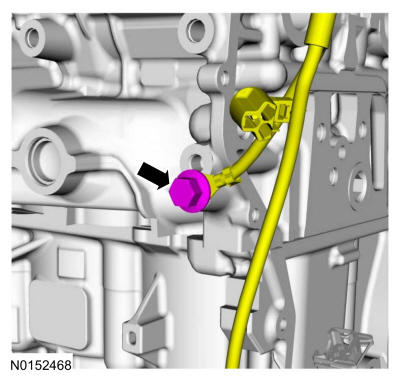

Install the wiring harness ground and bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

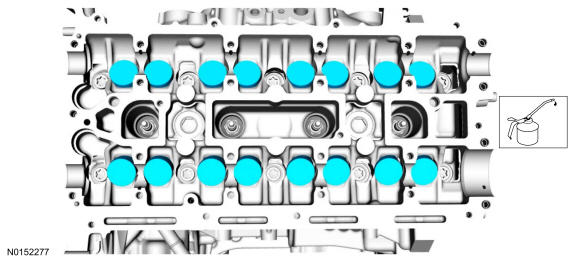

Lubricate with clean engine oil and install the valve tappets
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Camshafts .
2. Refer to: Fuel Rail .
Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
Remove the oil pan drain bolt and drain the engine oil. Install the oil pan drain bolt. Use the General Equipment: Oil Drain Equipment
Torque: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new engine oil filter.
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY
Install the turbocharger. Refer to: Turbocharger .
1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

  Lubricate each grommet with silicone grease.

  Material: Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
