Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

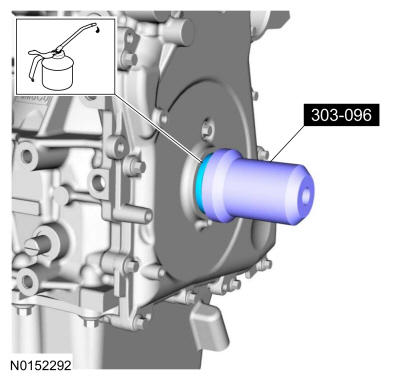

Using the special tool, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped, the diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.

NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

If equipped, install the diamond washer.

Courtesy of FORD MOTOR COMPANY

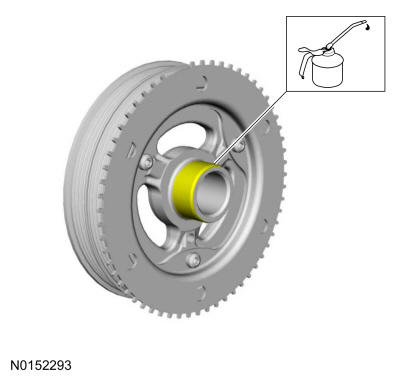

Lubricate the crankshaft pulley oil sealing surface with clean engine oil.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY

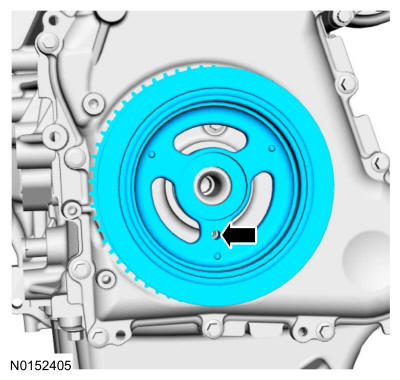

Install the crankshaft pulley.

Courtesy of FORD MOTOR COMPANY
NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

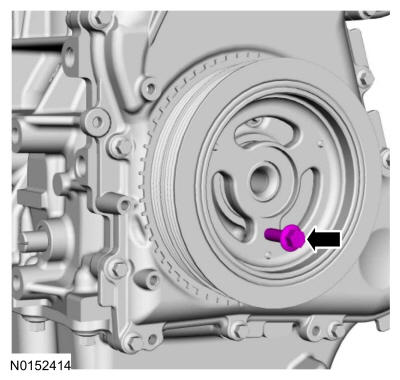

Install an M6 bolt.

Courtesy of FORD MOTOR COMPANY

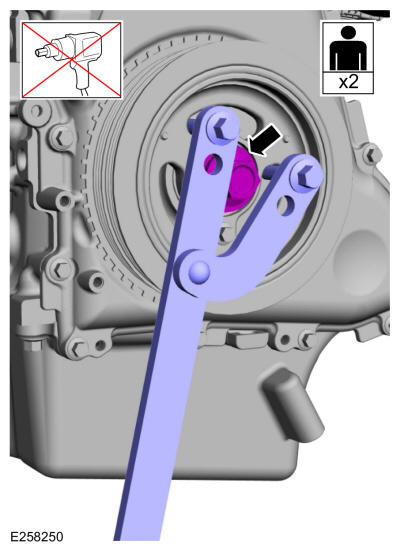

NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the universal pulley holder and the bolt should be installed using hand tools only.

NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

NOTE: A small amount of oil applied to the crankshaft bolt threads will ease the tightening process.

Install the crankshaft bolt and washer and tighten.

Torque:

Stage 1: 74 lb.ft (100 Nm)

Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY

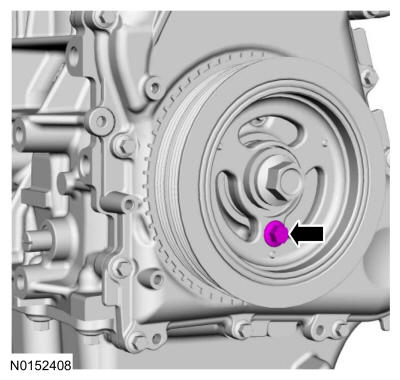

Remove the M6 bolt.

Courtesy of FORD MOTOR COMPANY
Install the CKP sensor and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY
Install the special tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
Install the engine plug bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1565 Alignment Tool, Camshaft.

Courtesy of FORD MOTOR COMPANY
Install the camshaft drive adapter.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

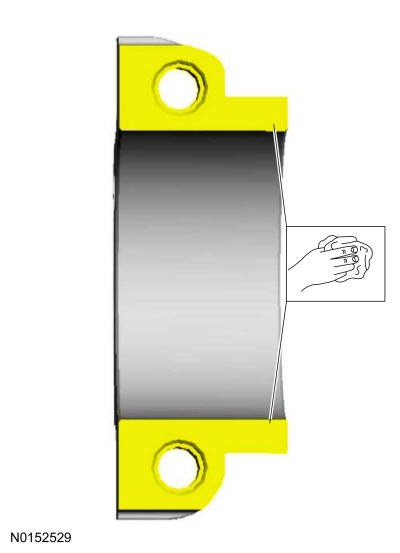

Clean the camshaft rear bearing cap.
Material: Motorcraft ® Gasket Maker / TA-16 (WSK-M2G348-A5)

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY
NOTE: The intake camshaft rear bearing cap must be secured within 10 minutes of sealant application. If the bearing cap is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft ® Metal Surface Prep.

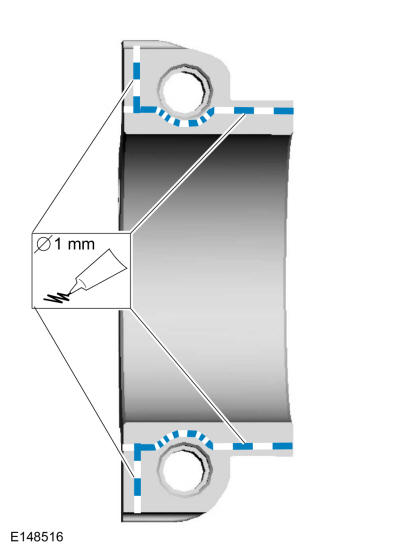

Apply a 1 mm bead of silicone sealant.

Material: Motorcraft ® Gasket Maker / TA-16 (WSK-M2G348-A5)

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY
NOTE: Wipe off any excess sealant from the vacuum pump sealing surface of the cylinder head and camshaft cap.

Install camshaft rear bearing cap and the bolts.

Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 142 lb.in (16 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Valve Cover .
2. Refer to: Brake Vacuum Pump .
3. Refer to: Accessory Drive Belt .
Position the fender splash shield and install the retainers.

Courtesy of FORD MOTOR COMPANY
Install the RH front wheel and tire. Refer to: Wheel and Tire .
Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
