Disassembly And Assembly Of Subassemblies: Piston: Disassembly
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod reassembly.

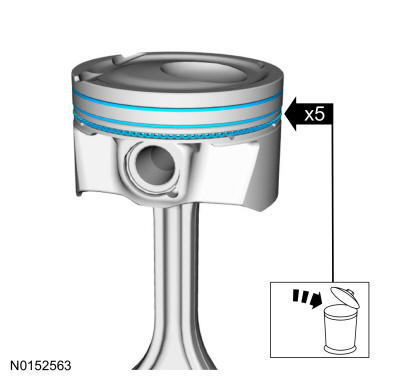

- Remove the piston rings and discard.

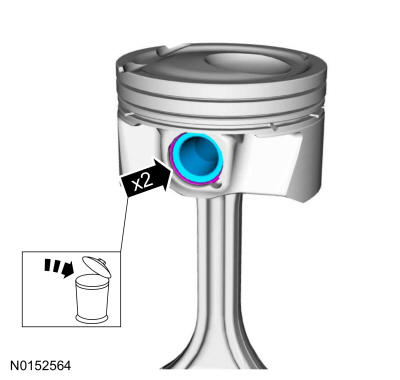

- Remove the piston pin retainers and discard and remove the piston pin.

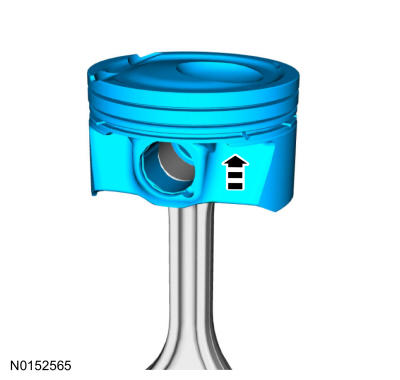

- Remove the piston from the connecting rod. Refer to: Piston Inspection .
