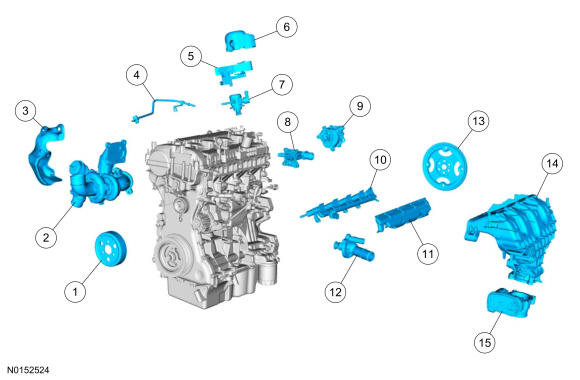

Exploded view of engine - External Components
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8509 | Coolant pump pulley |
| 2 | 6K682 | Turbocharger |
| 3 | 9G479 | Turbocharger heat shield |
| 4 | 8B535 | Coolant outlet tube |
| 5 | 9A397 | Fuel injection pump bracket |
| 6 | 9C374 | Fuel injection pump cover |
| 7 | 9D376 | Fuel injection pump |
| 8 | 8K556 | Coolant outlet |
| 9 | 2A451 | Brake vacuum pump |
| 10 | 9F797 | Fuel rail |
| 11 | 9U550 | Fuel rail shield |
| 12 | 8575 | Thermostat assembly |
| 13 | 6477 | Flexplate |
| 14 | 9424 | Intake manifold |
| 15 | 9424 | Throttle body |
