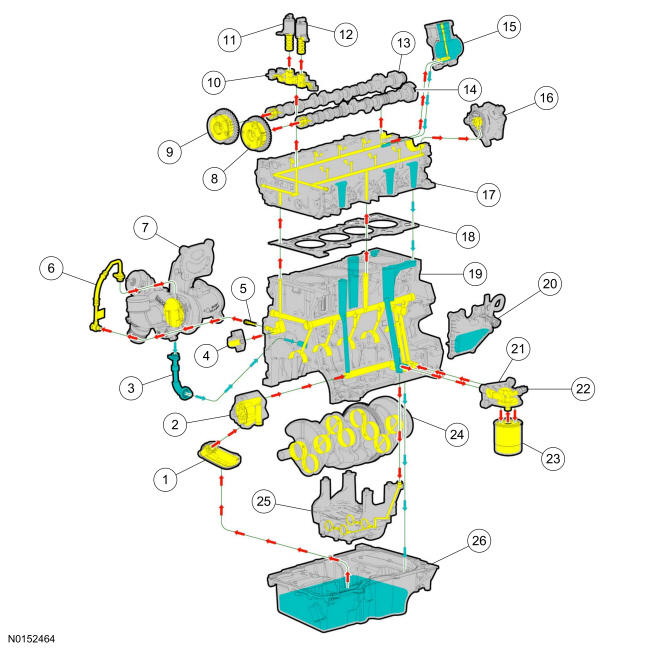

Engine Oil Flow Illustration
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Oil pump screen and pickup tube |
| 2 | Oil pump |
| 3 | Turbocharger oil return tube |
| 4 | Timing chain tensioner |
| 5 | Turbocharger oil filter |
| 6 | Turbocharger oil supply tube |
| 7 | Turbocharger |
| 8 | Intake VCT unit |
| 9 | Exhaust VCT unit |
| 10 | Camshaft front bearing cap (part of 6049) |
| 11 | Exhaust VCT oil control solenoid |
| 12 | Intake VCT oil control solenoid |
| 13 | Exhaust camshaft |
| 14 | Intake camshaft |
| 15 | Fuel pump housing |
| 16 | Vacuum pump |
| 17 | Cylinder head |
| 18 | Head gasket |
| 19 | Cylinder block |
| 20 | Crankcase vent oil separator |
| 21 | Oil Filter Adapter |
| 22 | Oil pressure switch |
| 23 | Oil filter |
| 24 | Crankshaft assembly |
| 25 | Balance shaft assembly |
