Rear Driveshaft: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Jacking and Lifting - Overview .
If equipped. Remove the retainers and the under body shield.

Courtesy of FORD MOTOR COMPANY

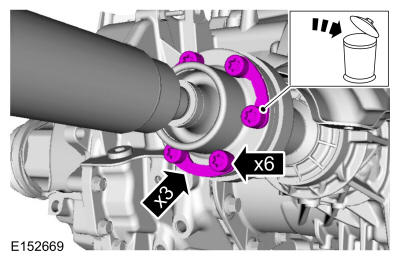

Remove and discard the driveshaft to PTU bolt and washer assemblies.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

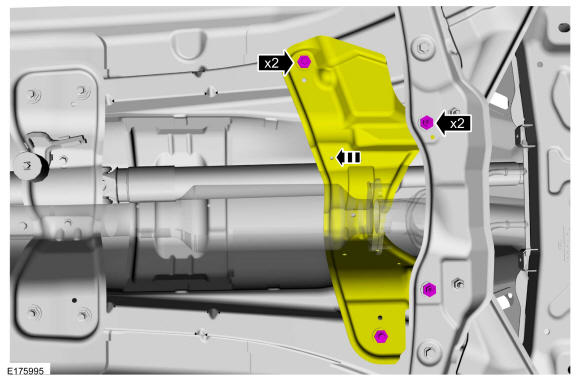

Remove the front driveshaft shield and bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

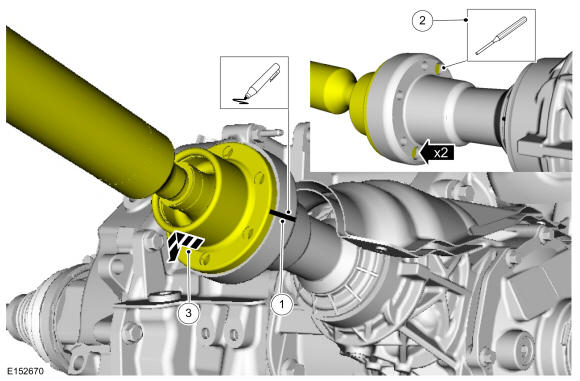

NOTE: Do not remove driveshaft from the PTU flange by pulling on the driveshaft tube. Damage to the CV joint can result.
1. Index-mark the driveshaft and PTU flange.
2. Using a punch and a copper hammer, separate the driveshaft from the PTU flange. Use the General Equipment: Punch Use the General Equipment: Copper Hammer
3. Remove the driveshaft from the PTU flange.
Courtesy of FORD MOTOR COMPANY
Remove and discard the driveshaft to RDU bolt and washer assemblies.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube. Damage to the CV joint can result.
1. Index-mark the driveshaft and RDU flange.
2. Using a flat blade screwdriver, separate the driveshaft from the RDU flange. Use the General Equipment: Flat-Bladed Screwdriver
3. Remove the driveshaft from the RDU flange.
Courtesy of FORD MOTOR COMPANY

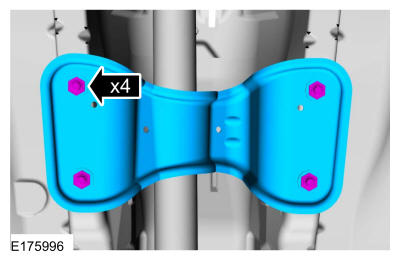

If equipped, remove the driveshaft shield and bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

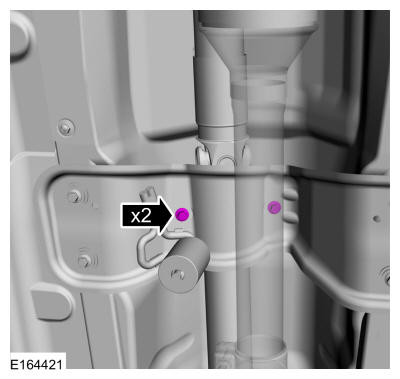

Remove the center bearing bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

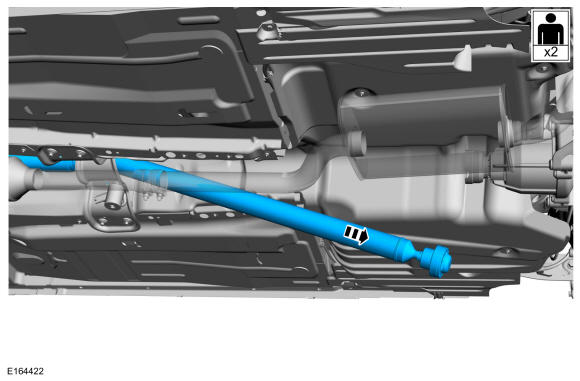

NOTE: Do not allow the angle of the driveshaft CV joints exceed 7 degrees.

With the help of an assistant, remove the driveshaft.

Courtesy of FORD MOTOR COMPANY
