Passive Anti-Theft System (PATS) Front Antenna: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
- Open the floor console stowage bin lid.

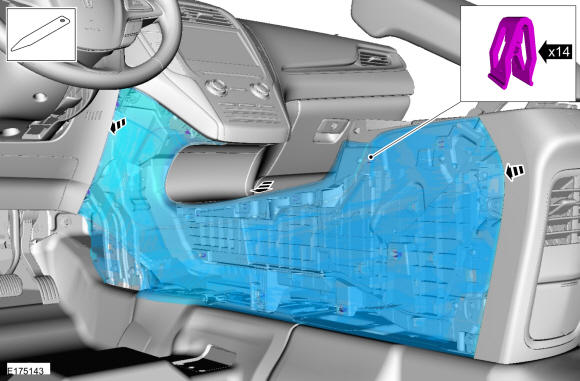

- Remove the LH trim panel.

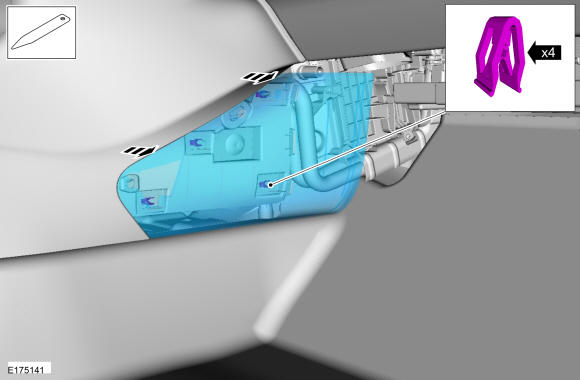

- Remove the LH finish panel.

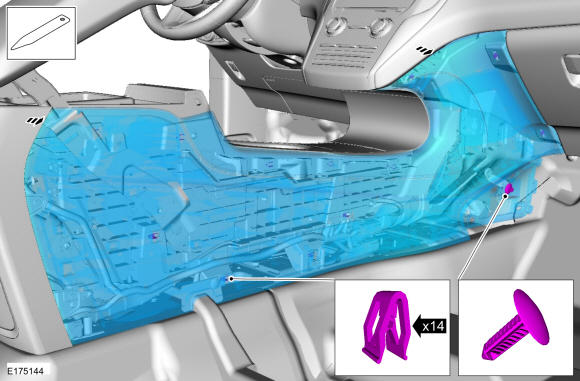

- Remove the RH trim panel.

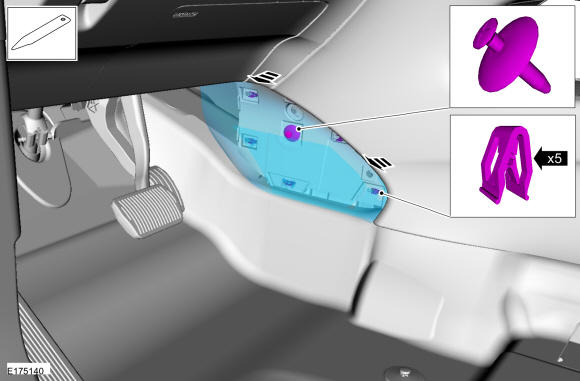

- Remove the RH finish panel.

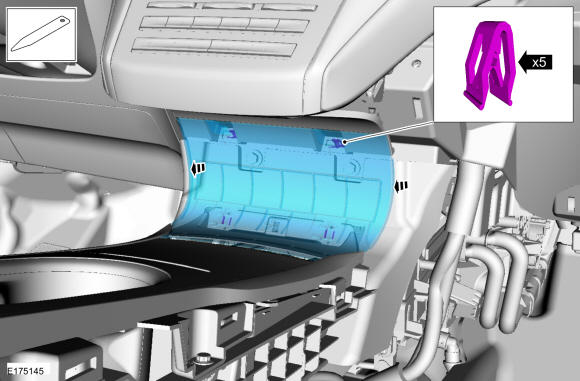

- Remove the floor console upper front trim panel.

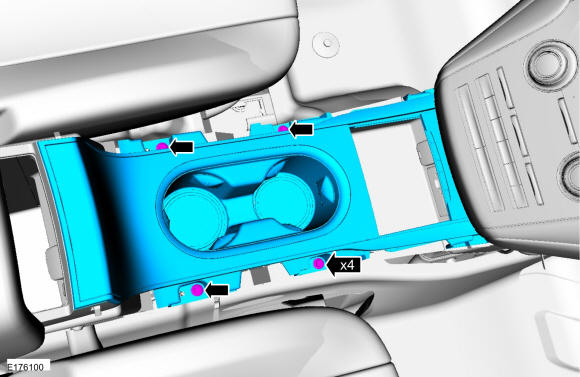

- Remove the 4 retainers and the center console cup holder trim.

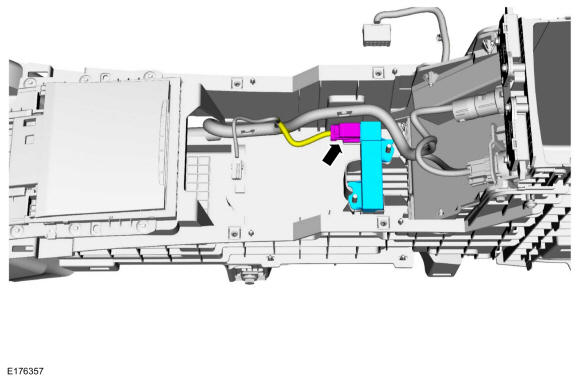

- Disconnect the PATS front antenna electrical connector and remove the antenna.
