Starter Motor: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

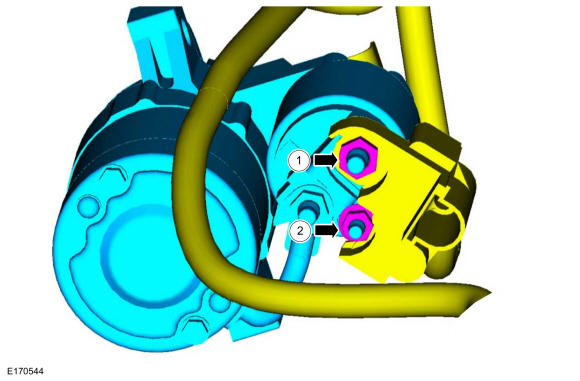

Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.
- Disconnect the battery. Refer to: Battery Disconnect and Connect .

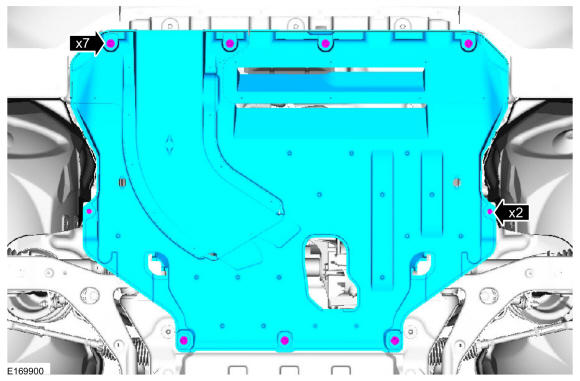

- Refer to: Jacking and Lifting - Overview .
- If equipped.
- Inspect the starter motor drive gear and flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .
