Cowl Panel Grille: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Windshield Wiper Pivot Arm .

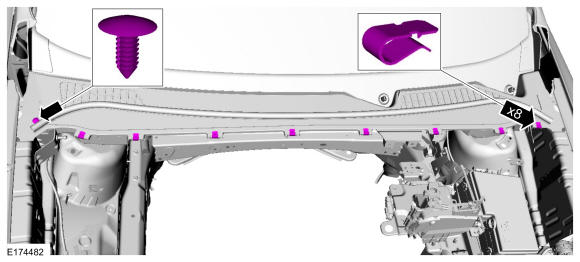

  2. GFD229981Courtesy of FORD MOTOR COMPANY

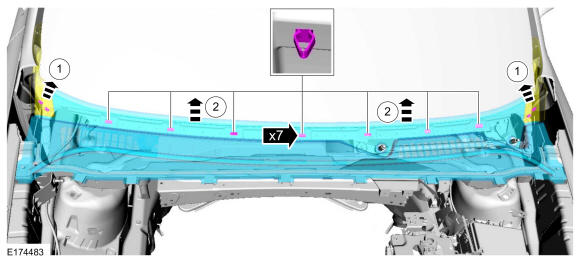

  3. With your fingers between the windshield and cowl panel grille, near each clip, pull up to release the 7 upper locking clips and remove the cowl panel grille.
GFD229982Courtesy of FORD MOTOR COMPANY
