Active Grille Shutter: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the headlamp assemblies. REFER to: Headlamp Assembly .
If equipped, remove the cruise control module and cruise control module bracket. REFER to: Cruise Control Module (CCM) With: Adaptive Cruise Control .

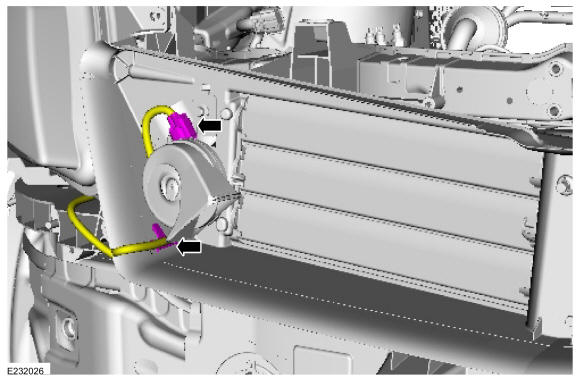

On both sides. Disconnect the electrical connector and detach the wire harness.

Courtesy of FORD MOTOR COMPANY

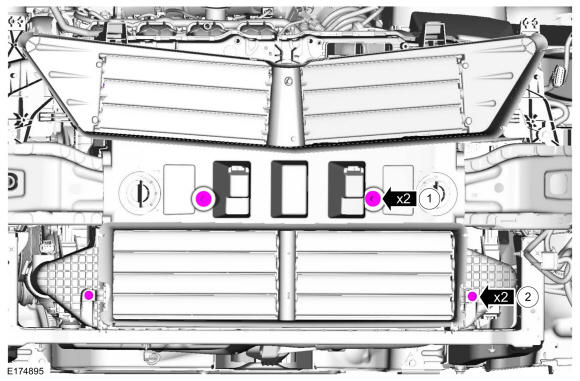

1. Remove the bolts.
  Torque: 53 lb.in (6 Nm)
2. Remove the bolts.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY
On both sides.

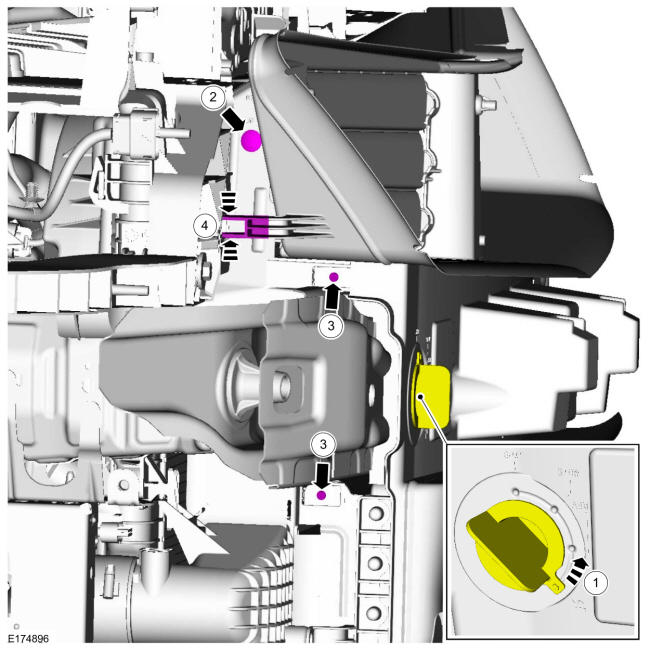

1. Rotate the stow knob from the LOCK position to the ASSEMBLE position.
2. Remove the pin-type retainer.
3. Remove the pin-type retainers.
4. Release the retaining tab.
Courtesy of FORD MOTOR COMPANY

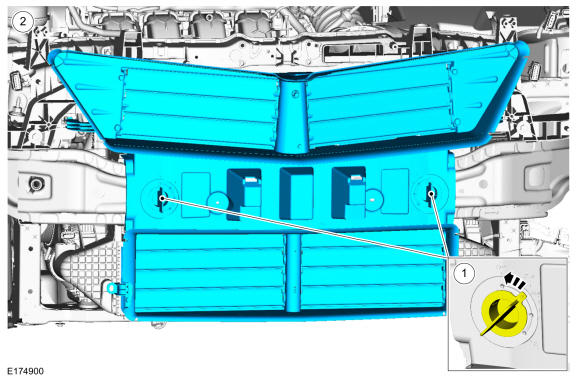

1. Rotate the stow knobs from the ASSEMBLE position to the STOW position.
2. Position the active grille shutter away from the bumper to allow access to the bridge link and electrical connector.
Courtesy of FORD MOTOR COMPANY

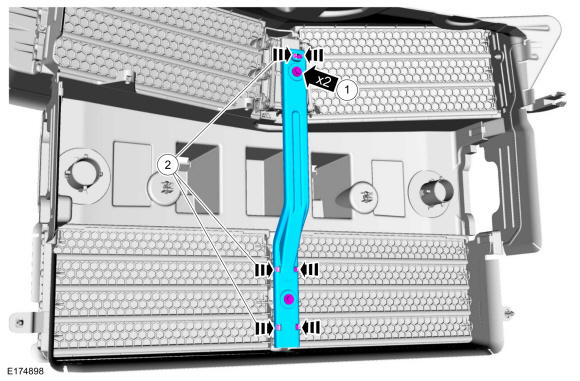

1. Remove the bolts.
  Torque: 27 lb.in (3 Nm)
2. Release the retaining tabs and remove the bridge link.
Courtesy of FORD MOTOR COMPANY

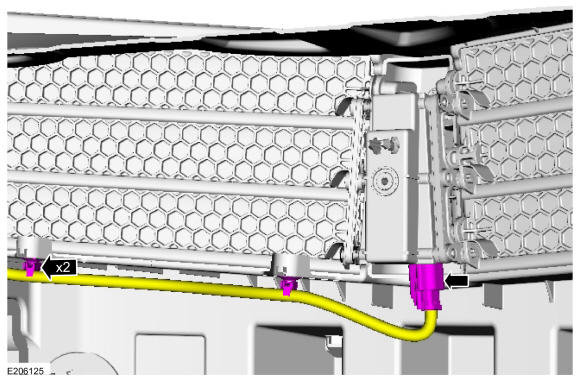

Disconnect the electrical connector and detach the wire harness.

Courtesy of FORD MOTOR COMPANY

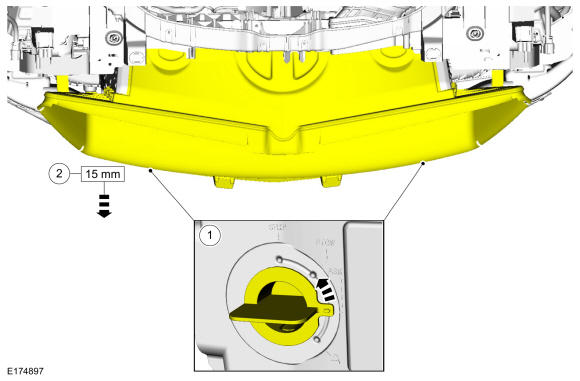

1. Rotate the stow knobs from the STOW position to the SHIP position.
2. Remove the active grille shutter.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

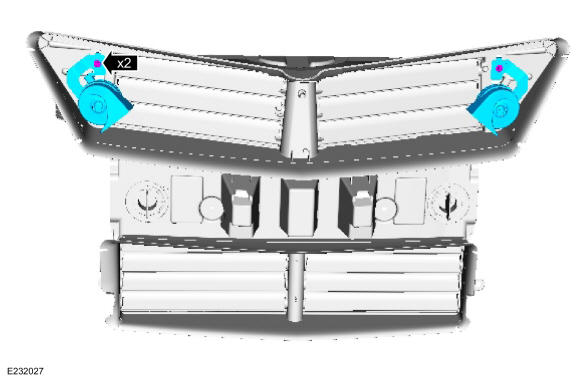

Remove the bolts and the horns.

Torque: 89 lb.in (10 Nm)
