Transmission Support Insulator: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
- Install the transmission support insulator and the bolt.
Torque: 109 lb.ft (148 Nm)
- Install the battery tray support bracket and install the nuts.
Torque: 35 lb.ft (48 Nm)
- Connect the wiring retainer.
- Install the battery tray. REFER to: Battery Tray .

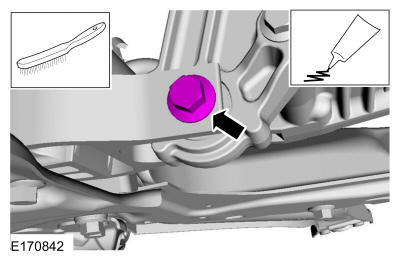

- Clean and apply threadlock to the roll restrictor bolt and install the roll restrictor bolt.
Material: Motorcraft ® Threadlock and Sealer / TA-25-B
Torque: 92 lb.ft (125 Nm)
Refer to: Engine Undershield .
