Transmission Internal Wiring Harness Frame: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

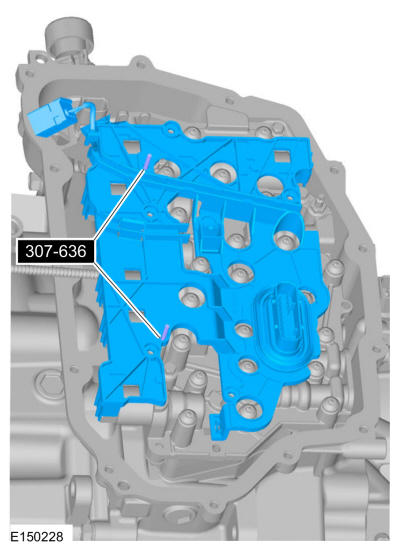

  1. Install the special tools in the solenoid body to align the transmission internal wiring harness frame during installation. Use Special Service Tool: 307-636 Alignment Pins- Valve Body.
    GFD228981Courtesy of FORD MOTOR COMPANY

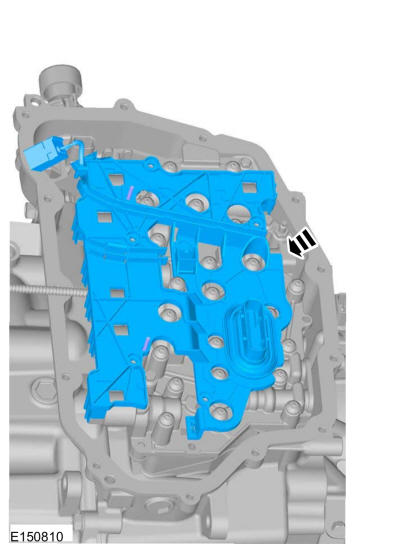

  2. Position the transmission internal wiring harness frame on the special tools and carefully install the transmission internal wiring harness frame by pushing straight down into the solenoids.
    GFD228982Courtesy of FORD MOTOR COMPANY

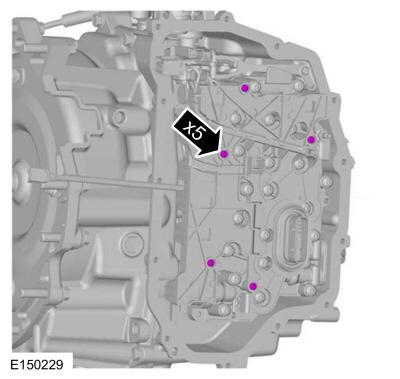

  3. Install the transmission internal wiring harness frame screws.

    Torque: 31 lb.in (3.5 Nm)

    GFD228983Courtesy of FORD MOTOR COMPANY

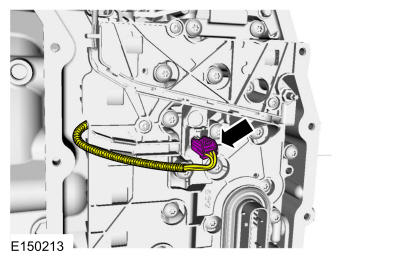

  4. Connect the OSS sensor electrical connector.
    GFD228891Courtesy of FORD MOTOR COMPANY

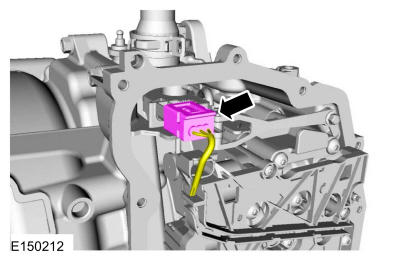

  5. Connect the TR sensor electrical connector.
    GFD228890Courtesy of FORD MOTOR COMPANY

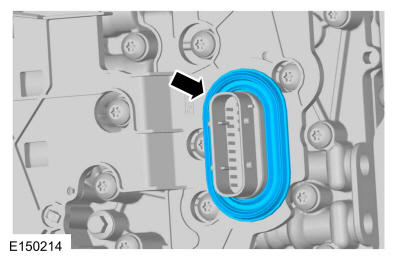

  6. Install the main control-to-cover seal.
    GFD228892Courtesy of FORD MOTOR COMPANY
  7. Install the main control cover. REFER to: Main Control Cover .
