Removal And Installation: Solenoid: Installation
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
-

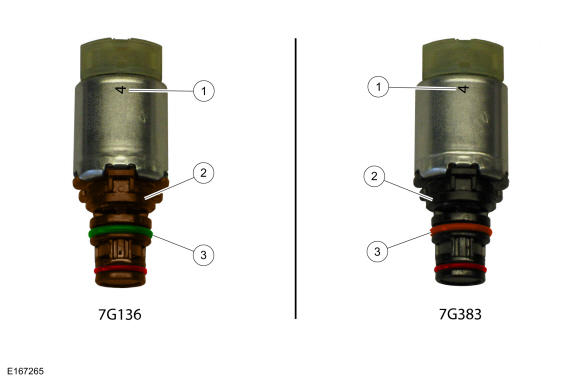

NOTE: Verify replacement component matches original component:
- Number
- Color
- Color
-
NOTE: Make sure the component is installed in the position noted before removal.

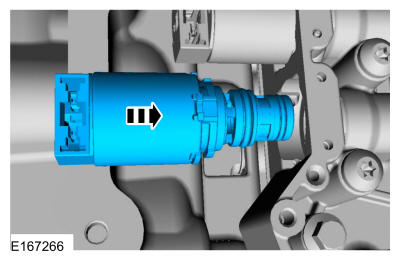

Install the solenoid(s) in the solenoid body.

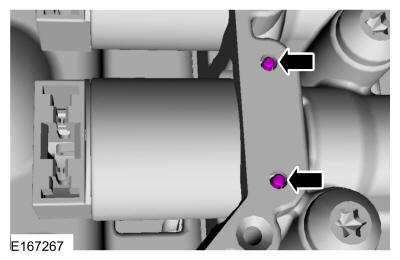

- Install the solenoid retaining pin(s).
- Install the transmission internal wiring harness frame. REFER to: Transmission Internal Wiring Harness Frame .
