Roll Restrictor RH: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Clean the bolts using a wire brush and apply Motorcraft ® Threadlock and Sealer to the threads.

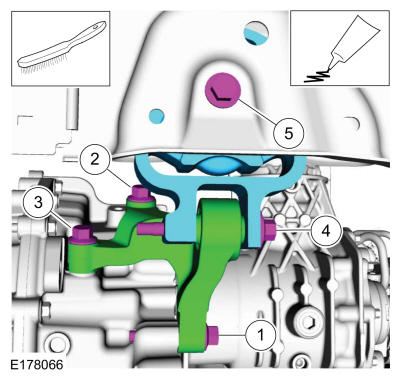

Install the roll restrictor and the roll restrictor bracket and tighten the bolts in the sequence shown.
1. Torque: 59 lb.ft (80 Nm)
2. Torque: 59 lb.ft (80 Nm)
3. Torque: 59 lb.ft (80 Nm)
4. Material: Motorcraft ® Threadlock and Sealer / TA-25-B
  Torque: 92 lb.ft (125 Nm)
5. Material: Motorcraft ® Threadlock and Sealer / TA-25-B
  Torque: 92 lb.ft (125 Nm)

Courtesy of FORD MOTOR COMPANY

Refer to: Engine Undershield .
