Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control valve body. REFER to: Main Control Valve Body .

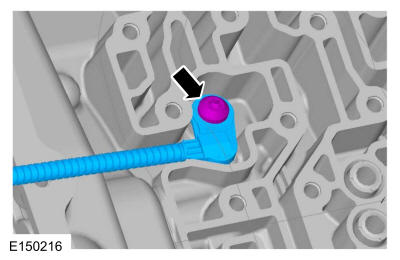

  2. Remove the OSS sensor bolt and the OSS sensor.

    Torque: 89 lb.in (10 Nm)

GFD228906Courtesy of FORD MOTOR COMPANY
