Halfshaft Seal LH: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH halfshaft. REFER to: Front Halfshaft LH .

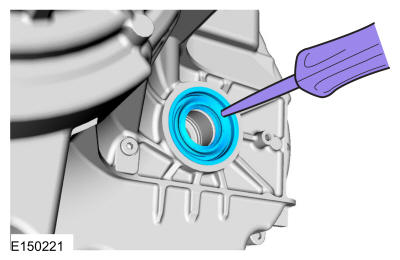

  2. Poke a small hole in the halfshaft seal. Use the General Equipment: Punch
    GFD228873Courtesy of FORD MOTOR COMPANY

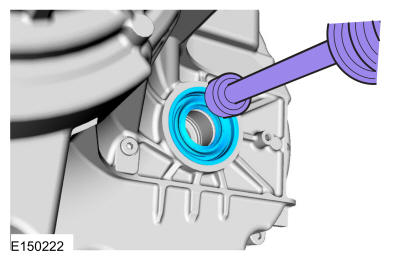

  3. Using a dent puller, remove the halfshaft seal. Use the General Equipment: Puller
GFD228874Courtesy of FORD MOTOR COMPANY
