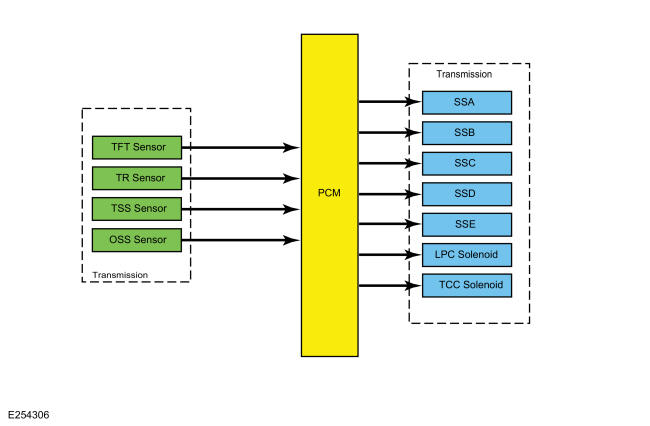

System Diagram

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
GFD228730Courtesy of FORD MOTOR COMPANY

Network Message Chart

Broadcast Message Originating Module Message Purpose
Engine Speed PCM Directly affects shift scheduling, TCC control, line pressure and transmission diagnostics. Indirectly affects shift pressure control.
Engine torque estimate PCM Directly affects shift pressure control, TCC control and transmission diagnostics. Indirectly affects shift scheduling and TCC scheduling.
APP PCM Directly affects shift scheduling, TCC scheduling and transmission diagnostics. Indirectly affects TCC control and shift control.
Commanded engine torque PCM Directly affects shift scheduling, TCC scheduling and transmission diagnostics. Indirectly affects shift control.
BPP PCM Directly affects shift scheduling and TCC scheduling
