System Diagram: Notes

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

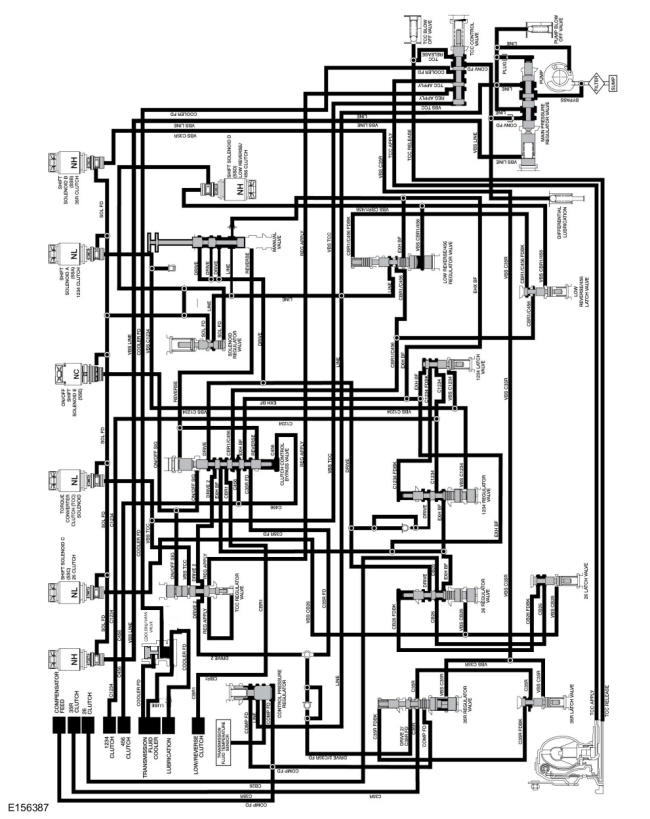

GFD228731Courtesy of FORD MOTOR COMPANY

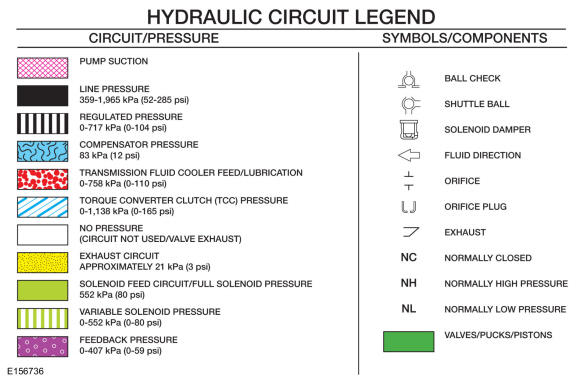

GFD228732Courtesy of FORD MOTOR COMPANY
