Section 1198 (Automatic Transmission - 6F35)
>>
Description And Operation
>>
Transmission Description - System Operation and Component Description
>>
Component Description
>>
System Diagram
>>
Manual Low Position and 1st Gear Below 8 km/h (5 mph) Solenoid Hydraulic Circuits

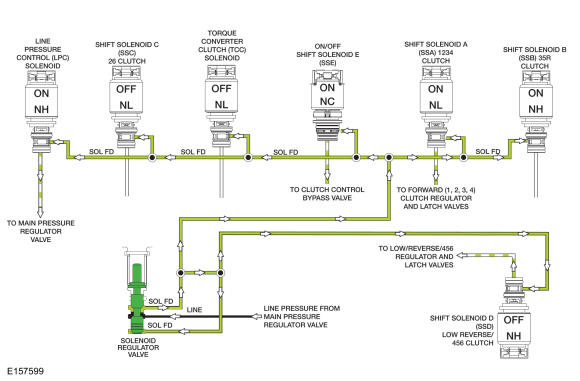

Manual Low Position and 1st Gear Below 8 km/h (5 mph) Solenoid Hydraulic Circuits
WARNING:
This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
