Section 1198 (Automatic Transmission - 6F35)
>>
Description And Operation
>>
Planetary Assembly
>>

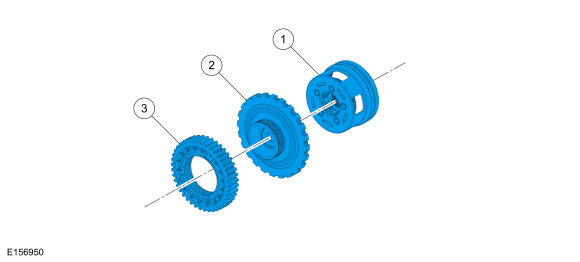

Front Planetary Carrier Hub Exploded View
Front Planetary Carrier Hub Exploded View
WARNING:
This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Front planetary carrier
2
Front planetary carrier hub/park gear
3
Drive chain drive sprocket
