Front Planetary Carrier Hub Cutaway View

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

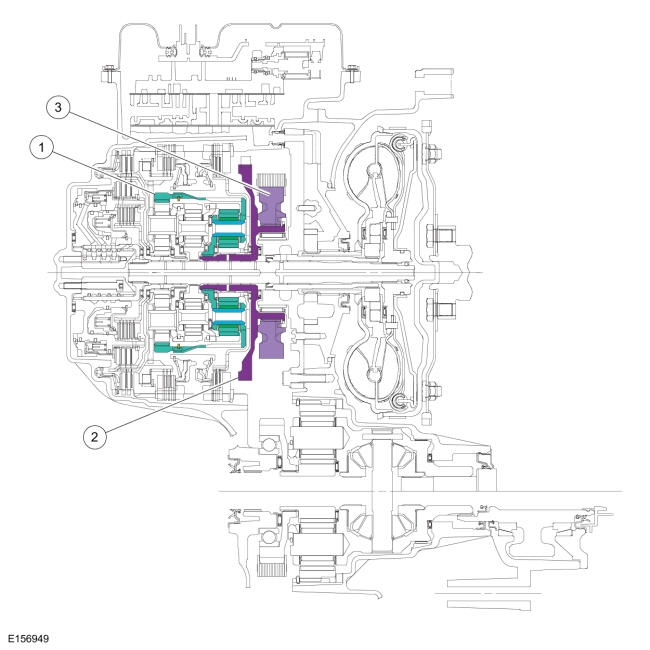

GFD228802Courtesy of FORD MOTOR COMPANY

Front Planetary Carrier Hub (Output Hub)

The front planetary carrier hub/park gear is splined to the front planetary carrier and the drive chain drive sprocket. This allows torque to be transferred from the planetary gearset to the final drive gearset.
