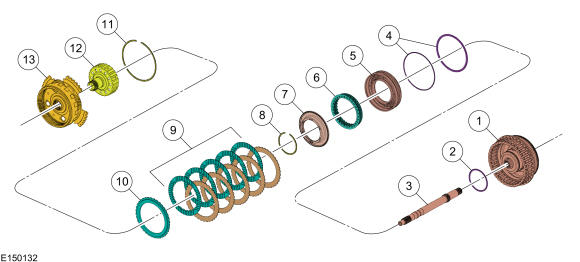

Overdrive (O/D) (4, 5, 6) Clutch Exploded View
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Direct/overdrive clutch hub assembly |
| 2 | Overdrive clutch piston inner seal |
| 3 | Input shaft |
| 4 | Overdrive clutch piston outer seals |
| 5 | Overdrive clutch piston |
| 6 | Overdrive clutch piston return spring |
| 7 | Overdrive clutch balance piston |
| 8 | Overdrive clutch balance piston snap ring |
| 9 | Overdrive (4, 5, 6) clutch assembly |
| 10 | Overdrive clutch pressure plate |
| 11 | Overdrive clutch snap ring |
| 12 | Overdrive clutch hub |
| 13 | Rear planetary carrier |
