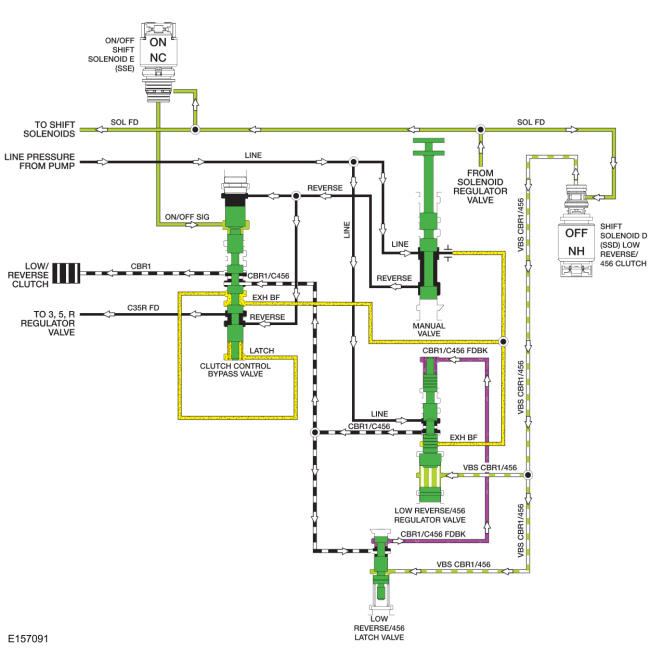

Low/Reverse Clutch Hydraulic Circuits (Applied in REVERSE)
Line pressure is supplied to the low reverse/456 regulator valve by the pump in every gear and manual lever position. To apply the low/reverse clutch, SSD supplies varying solenoid pressure to the low reverse/456 regulator and latch valves. As the low reverse/456 regulator valve moves, it supplies the clutch control bypass valve and low reverse/456 latch valve with regulated line pressure through the CBR1/C456 circuit. The low reverse/456 latch valve directs the regulated line pressure to the opposite side of the 456 regulator valve through the CBR1/C456 FDBK circuit for gradual low reverse/456 clutch engagement. The low/reverse clutch is applied in PARK, REVERSE, NEUTRAL, 1st gear below 8 km/h (5 mph) and manual LOW position.
In REVERSE, both solenoid pressure from ON/OFF SSE and line pressure from the manual valve in the REVERSE circuit apply pressure to the clutch control bypass valve to position it for low/reverse clutch application. Regulated line pressure from the CBR1/C456 circuit is directed to the low/reverse clutch by the clutch control bypass valve through the CBR1 circuit to apply the low/reverse clutch.
