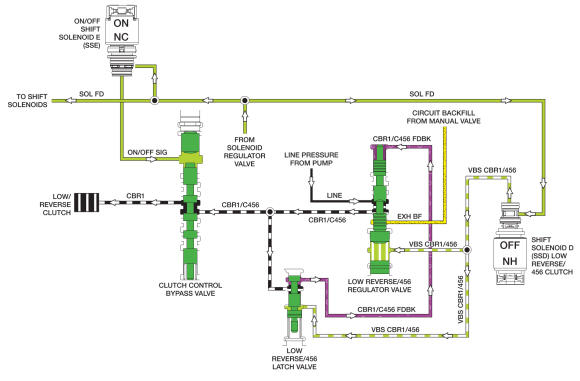

Low/Reverse Clutch Hydraulic Circuits (Applied in PARK, NEUTRAL, LOW or 1st gear below 8 km/h [5 mph])
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
When the low/reverse clutch is applied in PARK, NEUTRAL, LOW or 1st gear below 8 km/h (5 mph), only pressure from ON/OFF SSE, positions the clutch control bypass valve. Line pressure from the REVERSE circuit is not supplied by the manual valve.
