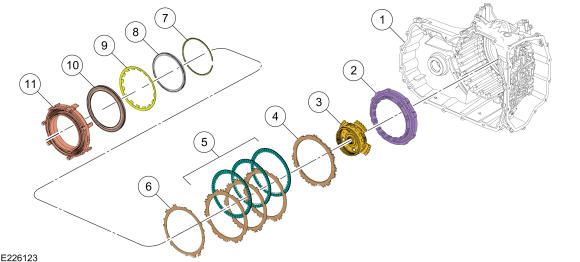

Low/Reverse Clutch Exploded View
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Transmission case |
| 2 | Low One-Way Clutch (OWC) |
| 3 | Rear planetary carrier |
| 4 | Low/reverse clutch pressure plate |
| 5 | Low/reverse clutch |
| 6 | Low/reverse clutch wave spring |
| 7 | Low/reverse clutch piston return spring snap ring |
| 8 | Low/reverse clutch piston return spring snap ring retainer |
| 9 | Low/reverse clutch piston return spring |
| 10 | Low/reverse clutch piston |
| 11 | Center support |
